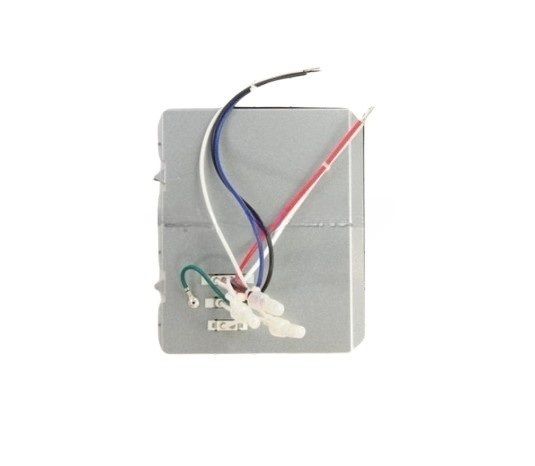

Nutone S97017713 Wire Panel Assembly

Be the first to review this product
$45.97
In stock
Available Quantity:   6
SKU
S97017713

Product Description

The Nutone S97017713 Wire Panel Assembly is a wiring harness that arranges and routes electrical connections inside the unit between the fan, heater, lights, and controls. It brings several wires together in an organized panel to ensure that there are correct signal paths and to ensure that the connections are safe, and it is installed in the fan or ventilation housing and connected to switches and components to the power source. It assists in maintaining a regular flow of electrical paths and connectivity to aid in the possible functioning of the operations of the component.
Add to Wish List
Manufacturer
Write Your Own Review
You're reviewing:Nutone S97017713 Wire Panel Assembly
Your Rating
FAQS
Customer Questions
What maintenance is required for the Nutone S97017713 Wire Panel Assembly?

Inspect the wire panel assembly periodically for loose connectors, corrosion, or heat discoloration around terminals. Ensure all wiring harnesses are securely seated and free from fraying or damage. Disconnect power before servicing and keep the enclosure clean and dry to maintain safe electrical connections.

What are common issues with the Nutone S97017713 Wire Panel Assembly?

  • Intermittent power loss to fan, light, or heater.
  • Loose or burnt wiring connections at terminals.
  • Component functions not responding correctly.
  • Overheating or discoloration of connector points.
  • Electrical shorts causing fuse or breaker trips.

Installation Steps

Step1: Disconnect power supply at the breaker before starting work.

Step2: Remove the housing cover or grille to access the internal assembly.

Step3: Label and disconnect all wiring from the old heater wire panel.

Step4: Unscrew and carefully remove the faulty panel assembly.

Step5: Install the new heater wire panel and secure it in position.

Step6: Reconnect wiring, refit cover, and restore power to test heating operation.
