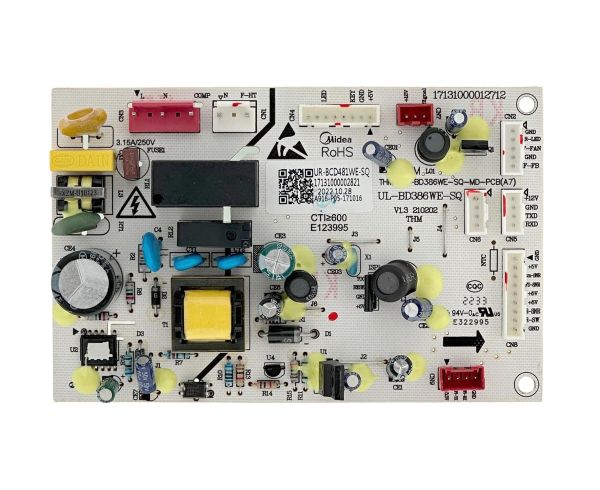

main product photo

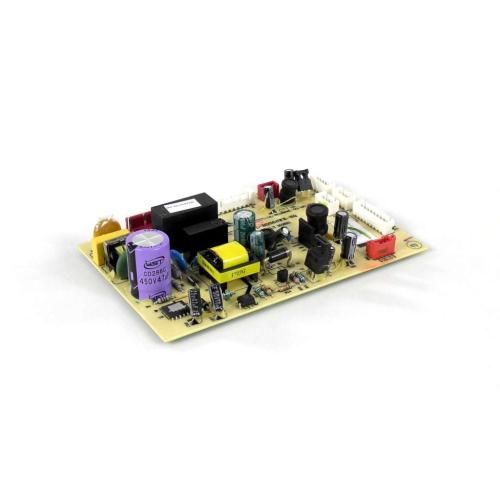

Midea 17131000002821 Refrigerator Main Control Board

Be the first to review this product
$63.14
In stock
Available Quantity:   82
SKU
17131000002821

Product Description

The Midea 17131000002821 Refrigerator Main Control Board is an internal electronic component that controls basic operations of the appliance. Its primary function it is to convert the temperature, user settings, and safety component inputs and control the compressor, fans, defrost, and display feedback. The board is installed in the control compartment and attached to the wiring harness and the components all over the unit. In the system, it allows the coordinated work of subsystems, supports maintaining the necessary temperature level and provides high stability of the work during the standard regular operation.
Add to Wish List
Refrigerator Parts, Control Boards,
Manufacturer
https://www.hnkparts.com/media/catalog/product/1/7/17131000002821_1.jpg

This Part Fits the Following Models (37)

Midea Single Door MU170CWBR1RC1 Midea 21.0 CU. FT. UPRIGHT CONVERTIBLE FREEZER/FRIDGE NSUZ21WH0 Midea 21.01 CU. FT. FROST-FREE UPRIGHT FREEZER/FRIDGE NSUZ21XWH7 Midea 17 CU. FT. UPRIGHT FREEZER HHRU17F4AWW Midea 13.8 CU. FT. CONVERTIBLE UPRIGHT REFRIGERATOR-FREEZER MU138SWAR1RC1 Midea Refrigerator Single Door MU210CWBR1RC1 Midea Insignia Single Door Refrigerator NSUZ21WH0C Midea SINGLE DOOR 14 CU. FT. CONVERTIBLE UPRIGHT FREEZER WHS507FWE Midea SINGLE DOOR 14 CU. FT. CONVERTIBLE UPRIGHT FREEZER WHS507FWEW1 Midea SINGLE DOOR 21 CU. FT. CONVERTIBLE UPRIGHT FREEZER WHS772FWE Midea SINGLE DOOR 21 CU. FT. CONVERTIBLE UPRIGHT WHS772FWEW1 Midea SINGLE DOOR 21 CU. FT. CONVERTIBLE UPRIGHT FREEZER WHS772FWESS1 Midea Single Door NSUZ17XWH7 Midea Single Door WHS507FWESS1 Midea Single Door WHS625FWESS1
Showing 1-15 of 37
Write Your Own Review
You're reviewing:Midea 17131000002821 Refrigerator Main Control Board
Your Rating
FAQS
Customer Questions
What maintenance is required for the Midea 17131000002821 Main Control Board?

Ensure the refrigerator control board area remains dry and free from dust buildup to prevent electrical faults. Check wiring connections for tightness and signs of wear. Avoid power surges by using a stabilizer. Always disconnect power before inspecting the board.

What are common issues with the Midea 17131000002821 Main Control Board?

  • Refrigerator not powering on or responding.
  • Erratic temperature control or fluctuations.
  • Failure to start compressor or fans.
  • Display or control panel malfunctions.
  • Intermittent operation due to faulty circuitry.

Installation Steps

Step1: Disconnect main power supply and ensure no current is flowing.

Step2: Remove appliance access panel carefully using proper tools.

Step3: Label and disconnect all wiring harness connectors.

Step4: Unscrew and remove the faulty control board assembly.

Step5: Install new board and reconnect all terminals securely.

Step6: Refit panel and restore power to test normal operation.
