main product photo

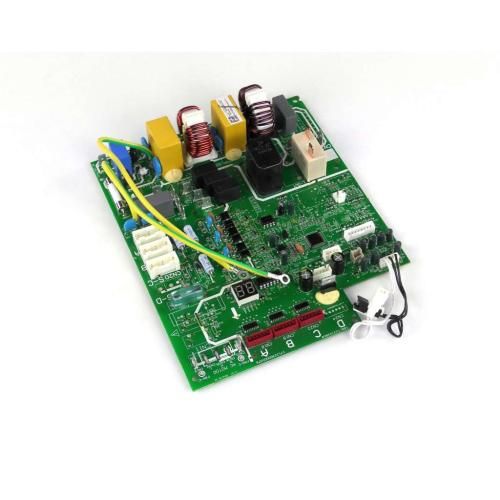

Midea 17122300001094 Air Conditioner Main Control Board

Rating:
5 5 2
2 Reviews Add Your Review
Special Price $75.56 Regular Price $79.95
In stock
Available Quantity:   14
SKU
17122300001094

Product Description

The Midea 17122300001094 Main Control Board is used for functions such as temperature control, fan speed control, and compressor control in the air conditioner. Operates through controlling signals from sensors and inputs from the user to ensure the cooling capability. Improves energy utilization and ensures the proper functioning of the various system components when the different elements are well coordinated. This board ensures that runs efficiently.
Add to Wish List
Other Categories, Electrical & Electronics, Control Boards|Panels
Manufacturer
https://www.hnkparts.com/media/catalog/product/1/7/17122300001094-1.jpg

This Part Fits the Following Models (5)

Write Your Own Review
You're reviewing:Midea 17122300001094 Air Conditioner Main Control Board
Your Rating
FAQS
Customer Questions
What maintenance is required for the Midea 17122300001094 Main Control Board?

Regularly inspect control board connections and wiring for secure attachment and signs of dust or corrosion. Test key control functions to ensure proper signal transmission. Keep surrounding areas clear and avoid flexing or pressing components during inspection.

What are common issues with the Midea 17122300001094 Main Control Board?

  • AC not powering on.
  • Cooling cycles are not initiating.
  • Fan speeds are not adjusting correctly.
  • Error codes are appearing unexpectedly.

Installation Steps

Step1: Turn off the power to the air conditioner at the breaker.

Step2: Remove the front cover or panel to access the control board.

Step3: Disconnect all wiring connectors from the old board carefully.

Step4: Unscrew and remove the faulty control board from its mounting.

Step5: Install the new board and reconnect all wires securely.

Step6: Replace the cover, restore power, and test unit operation.
