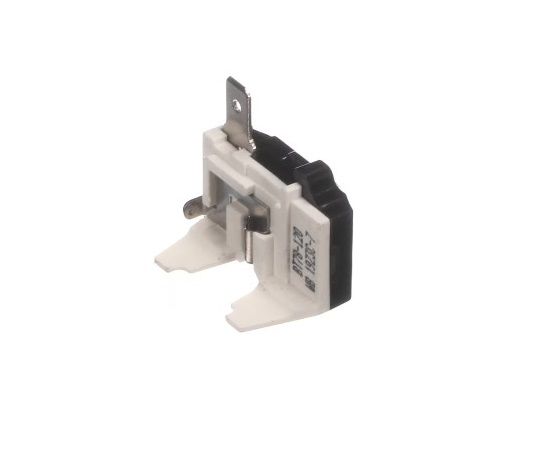

Magic Chef BT78-120 Refrigerator Overload Protector MCR1010WEF

Be the first to review this product
$49.81
In stock
Available Quantity:   4
SKU
BT78-120

Product Description

The Magic Chef BT78-120 Refrigerator Overload Protector is a secure element that can assist in protecting the compressor against overheating and electrical overload. It works mainly by cutting off power to the compressor in cases when current levels increase past secure levels, and it avoids damage and unnecessary costs. The mechanism operates by a temperature-sensitive and a current-sensitive switch that operates when there is an abnormal condition and when the conditions are normal again. It is fixed on the compressor compartment, and it interconnects the compressor terminals with the power supply.
Add to Wish List
Refrigerator Parts, Compressors,
Manufacturer
https://www.hnkparts.com/media/catalog/product/b/t/bt78-120.jpg

This Part Fits the Following Models (4)

Write Your Own Review
You're reviewing:Magic Chef BT78-120 Refrigerator Overload Protector MCR1010WEF
Your Rating
FAQS
Customer Questions
What maintenance is required for the Magic Chef BT78-120 Overload Protector?

Ensure electrical connections remain firmly seated to support consistent compressor activation. Keep the surrounding compartment clear to allow proper heat release during operation. Confirm the refrigerator starts promptly after power restoration and maintains steady cooling cycles throughout daily use.

What are common issues with the Magic Chef BT78-120 Overload Protector?

  • Compressor not starting accurately.
  • Cooling cycle stopping unexpectedly.
  • Refrigerator failing to restart.
  • Temperature rising during operation.

Installation Steps

Step1: Unplug the refrigerator to avoid electrical shock risk.

Step2: Access the compressor area at the back of the unit.

Step3: Remove the faulty overload protector from the compressor terminal.

Step4: Attach the new protector securely onto the terminal pins.

Step5: Ensure all connections are tight and properly seated.

Step6: Restore power and monitor compressor startup for normal operation.
