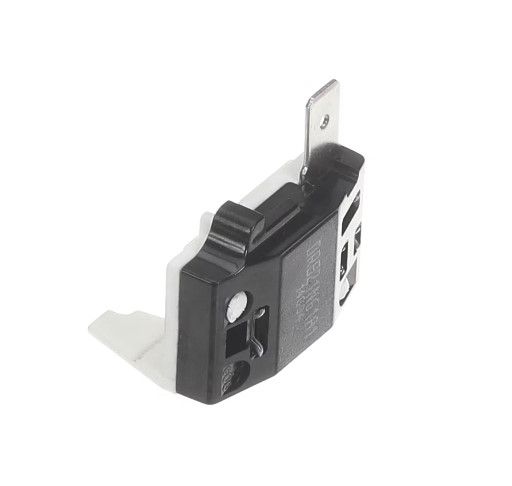

Magic Chef 312200500423 Compressor Motor Protector DRB21N61A1

Be the first to review this product
$46.96
In stock
Available Quantity:   6
SKU
312200500423

Product Description

The Magic Chef 312200500423 Compressor Motor Protector DRB21N61A1 is an internal safety component used in the protection of the compressor in the appliance. Its primary use is to check on the temperature of the motor used and cut off electricity in case of overheating of the compressor or excessive current. The protector is fitted at the terminal of the compressor and it is attached to the wiring harness. It supports preventing motor damage within the system, assists in operating safely with the load conditions, and provides reliable cooling performance in the normal operating conditions.
Add to Wish List
Manufacturer
Write Your Own Review
You're reviewing:Magic Chef 312200500423 Compressor Motor Protector DRB21N61A1
Your Rating
FAQS
Customer Questions
What maintenance is required for the Magic Chef 312200500423 Compressor Motor Protector?

Regularly inspect the compressor motor protector for signs of damage, corrosion, or loose connections. Ensure the surrounding compressor area is clean and free of dust buildup that can affect heat dissipation. Check wiring integrity and secure fitment during routine appliance servicing. Always disconnect power before handling to avoid electrical hazards.

What are common issues with the Magic Chef 312200500423 Compressor Motor Protector?

  • Compressor failing to start due to protector malfunction.
  • Intermittent power cutoff affecting cooling performance.
  • Overheating issues from improper thermal protection.
  • Loose or corroded electrical connections causing inconsistent operation.
  • Protector tripping repeatedly under normal load conditions.

Installation Steps

Step1: Disconnect power at breaker and unplug appliance to prevent shock.

Step2: Remove rear cover to access compressor wiring compartment area.

Step3: Detach old motor protector and note wire positions carefully.

Step4: Install new motor protector, matching terminals securely and ensuring correct alignment.

Step5: Reassemble cover, restore power, and test compressor operation carefully.

Step6: Verify normal startup and monitor for overheating or noise during initial cycle.
