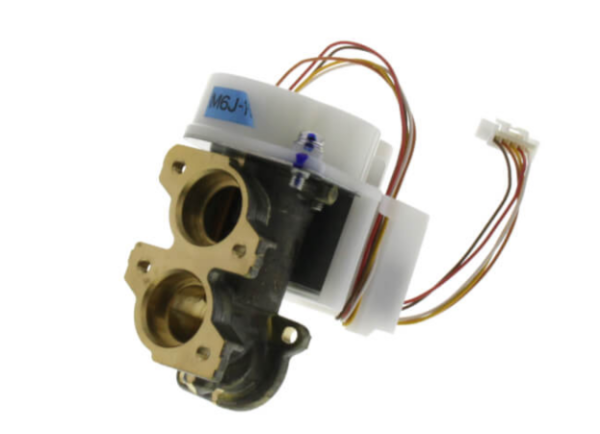

main product photo

Rinnai M6J-1-3 Water Heater By-Pass Servo Assembly 403V

Be the first to review this product
Special Price $147.61 Regular Price $167.41
Out of stock
Available Quantity:   0
SKU
M6J-1-3

Product Description

The Rinnai M6J-1-3 Water Heater By-Pass Servo Assembly controls the water flow and maintains the desired temperature for better performance. It works by regulating the bypass mechanism, the water passage to ensure proper heating is maintained. When water enters the unit, the servo assembly regulates the flow of water to avoid temperature changes and to increase efficiency. This helps to ease the pressure on internal parts, increase the durability of the heating system and enhance its performance.
Add to Wish List
Manufacturer
Manufacturer Name: RINNAI
Product Number: M6J-1-3
OEM Part Number: M6J-1-3
Product Description: By-Pass Servo Assembly (403) V

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Rinnai M6J-1-3 Water Heater By-Pass Servo Assembly 403V
Your Rating
FAQS
Customer Questions
What maintenance is required for the Rinnai M6J-1-3 By-Pass Servo Assembly?

Regularly inspect the servo assembly for any signs of corrosion, leaks, or loose connections. Lubricate moving parts lightly if recommended, and ensure the electrical connections remain secure. Proper maintenance ensures consistent water flow and prevents operational malfunctions. Always turn off power before servicing.

What are common issues with the Rinnai M6J-1-3 By-Pass Servo Assembly?

  • Servo motor failure or unresponsiveness.
  • Inaccurate or delayed water flow adjustments.
  • Electrical connection faults causing intermittent operation.
  • Sticking or jammed by-pass valve affecting water pressure.

Installation Steps

Step1: Turn off power and water supply to the heater.

Step2: Release pressure and drain system partially.

Step3: Remove old bypass servo assembly carefully.

Step4: Align new bypass servo assembly with ports.

Step5: Secure fittings and tighten connections properly.

Step6: Reconnect electrical wiring as per diagram.

Step7: Restore water supply and check for leaks.

Step8: Restore power and test temperature control.
