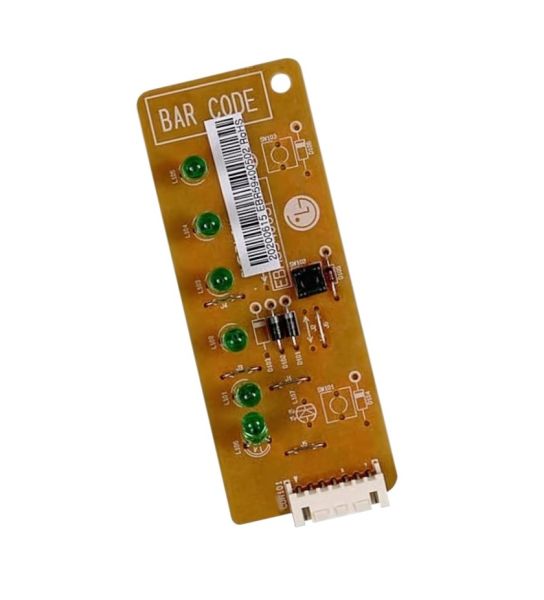

main product photo

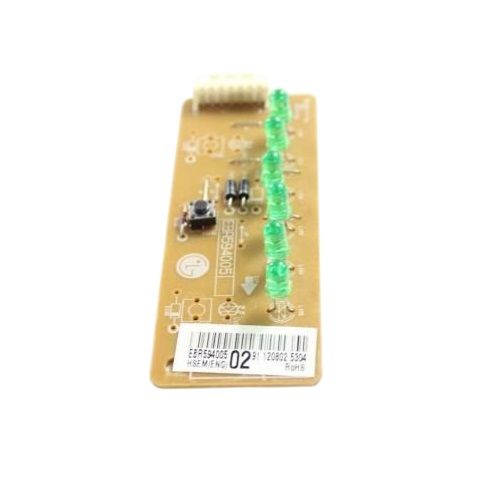

LG EBR59400502 Refrigerator Display Control Board

Rating:
5 5 2
2 Reviews Add Your Review
Special Price $66.06 Regular Price $77.95
In stock
Available Quantity:   21
SKU
EBR59400502

Product Description

The LG EBR59400502 Refrigerator Display Control Board is an electronic component, that controls the user interface and working features of the appliance. Its function is to receive the input of the control panel and monitor signals to other internal systems, including temperature settings, alarms, and mode selections. The board works on the interpretation of the commands and organization of the electronic responses of the appliance with the support of the connected circuits. It is placed on the rear of the front display panel and is installed in the special control housing and connected through the proper wiring harness.
Add to Wish List
Refrigerator Parts, Control Boards,
Manufacturer
https://www.hnkparts.com/media/catalog/product/e/b/ebr59400502_1.jpg

This Part Fits the Following Models (27)

Showing 1-15 of 27

Product Overview:

Controls and presents refrigerator settings through the user-facing electronic interface, the LG EBR59400502 Refrigerator Display Control Board is an electronic control component used in specified LG refrigerators. It combines the display and user-control functions within a dedicated electronic assembly.

Display Signal Processing:

Electronic information from the refrigerator's control system is received and processed through the display control board's circuitry. The board provides the electrical signals required to present applicable settings and control information through the refrigerator's display interface.

User Interface Control:

The display control board supports the user-facing control functions associated with the refrigerator's electronic interface. It allows applicable settings and operating information to be presented through the display while supporting the corresponding control selections.

Replacement Guidelines:

Replacement may be appropriate when the display control board is damaged or no longer performs its intended display and interface functions. A properly specified replacement restores the electronic interface function required by the applicable LG refrigerator.

Common Failure Symptoms:

  • Refrigerator settings are not displayed correctly.
  • Temperature information may appear incorrectly or inconsistently.
  • Displayed control settings may not respond as expected.
  • Dispenser-related settings may not display or respond normally.
  • Multiple display or interface functions may become inconsistent.

Equipment Compatibility:

The LG EBR59400502 Refrigerator Display Control Board should be matched to the applicable LG refrigerator by verifying the complete refrigerator model number and part number EBR59400502 before purchase.

Technical Specifications:

Brand: LG

Part Number: EBR59400502

Product Type: Display Control Board

Component Type: PCB Assembly

Appliance Type: Refrigerator

Reviews 2
Write Your Own Review
You're reviewing:LG EBR59400502 Refrigerator Display Control Board
Your Rating
FAQS
Customer Questions
What maintenance is required for the LG EBR59400502 Display Control Board?

Keep connectors fully seated and clean from dust. Confirm all inputs respond immediately on the display. Verify that settings adjust correctly, functions execute promptly, and the display updates accurately during repeated regular use without skipped or delayed responses.

What are common issues with the LG EBR59400502 Display Control Board?

  • Display not updating correctly.
  • Settings not responding.
  • Commands delayed or ignored.
  • Input response inconsistent.

What information can a display control board present to the user?

It can present applicable temperature settings and other control information through the appliance’s electronic interface.

How does a display control board differ from a refrigerator's main control board?

A display control board primarily handles the electronic functions associated with the user interface and display. A main control board serves broader appliance-control functions, so the two components have different responsibilities within the refrigerator's electronic system.

Why are display control boards designed around specific refrigerator interfaces?

Display control boards are designed to work with the particular control layout and electronic interface of the refrigerator. Differences in display features, user controls, and supported functions can result in different board designs.

Can one display interface handle both information and user selections?

Yes. The display system can present applicable information while also receiving selections entered through the user controls.

What types of settings can be accessed through the LG EBR59400502?

The LG EBR59400502 can support applicable settings and control information presented through the refrigerator’s display area, depending on the appliance’s interface configuration.

Installation Steps

Step1: Disconnect power supply and ensure the refrigerator is completely off.

Step2: Remove the control panel cover to access the display board area.

Step3: Carefully unplug all wiring connectors from the existing board.

Step4: Unscrew and remove the old display control board from its mount.

Step5: Position the new display control board and secure it tightly with fasteners.

Step6: Reconnect wiring, reinstall cover, restore power, and verify display function.
