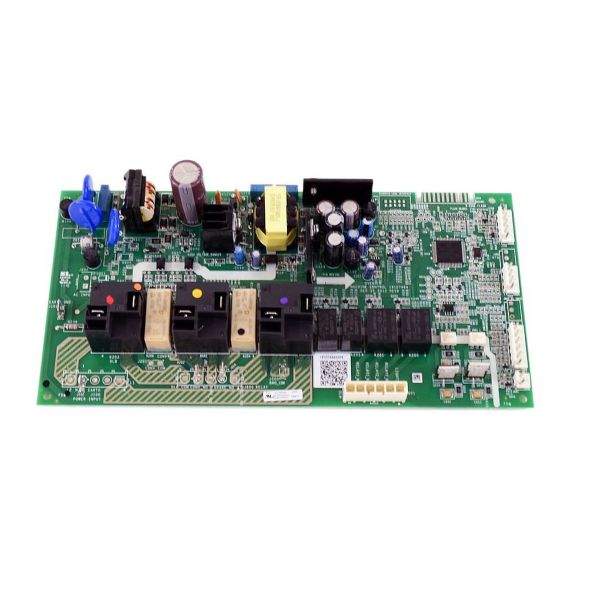

General Electric WB27X24645 Oven Machine Control Board

Rating:
5 5 1
1 Review Add Your Review
Special Price $291.13 Regular Price $395.97
In stock
Available Quantity:   2
SKU
WB27X24645

Product Description

The General Electric WB27X24645 Oven Machine Control Board is the main electronic component that controls the heating elements, the timers and cooking abilities of the appliance. Its primary function is to interpret user inputs and sensor signals in order to control power delivery to ensure proper temperature control and cooking cycles. It is mounted at the back of the control panel of the oven, attached to the mounting points, and hooked to the wiring harness. This board provides high accuracy in maintaining the temperature, a reliable cooking performance and a complete synchronization of all the oven functions.
Add to Wish List
Stove & Oven Parts, Control Boards,
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/b/wb27x24645-81757.jpg

This Part Fits the Following Models (10)

Write Your Own Review
You're reviewing:General Electric WB27X24645 Oven Machine Control Board
Your Rating
FAQS
Customer Questions
What maintenance is required for the General Electric WB27X24645 Machine Control Board?

Check that control selections change accurately when choosing different cooking programs. Keep the control area free from grease buildup that may interfere with electronic signals. Verify the display updates correctly and cooking cycles start promptly after selecting desired settings.

What are common issues with the General Electric WB27X24645 Machine Control Board?

  • Oven not starting programs.
  • Display showing incorrect information.
  • Cooking modes not responding.
  • Temperature settings not registering.

Installation Steps

Step1: Shut off electrical power at the circuit breaker before beginning.

Step2: Remove the rear or top panel to access the control compartment.

Step3: Carefully disconnect all wiring connectors from the existing board.

Step4: Unscrew the mounting hardware securing the board in place.

Step5: Install the replacement board and fasten it securely.

Step6: Reconnect wiring, close the panel, restore power, and verify normal operation.
