main product photo

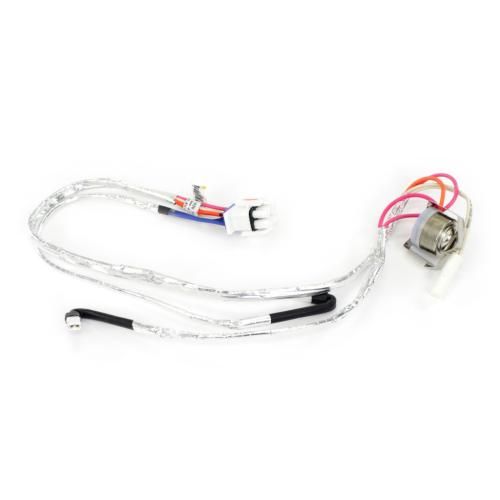

GE WR55X30889 Refrigerator Evaporator Harness

Rating:
5 5 1
1 Review Add Your Review
Special Price $62.23 Regular Price $63.95
In stock
Available Quantity:   35
SKU
WR55X30889

Product Description

The GE WR55X30889 Refrigerator Evaporator Harness is a part assembly that is installed to connect the components of the control system. It is mainly used to pass power and sensor signals among the evaporator fan, defrost elements and temperature sensors. The mechanism is a set of insulated wires, connectors of which are installed in the factory to ensure proper electrical routing and provide secure connections. It can be found in the freezer side of the evaporator coil and is fitted by means of plugging in a specific set of terminals and running along the interior panel.
Add to Wish List
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/r/wr55x30889-1.jpg

This Part Fits the Following Models (67)

GE XNE25JSKJFSS Bottom-Mount Refrigerator GE XNE25JSKNFSS Refrigerator GE XNE25JSKPFSS Refrigerator GE XNE25JGKNFBB Refrigerator GE XNE25JGKJFWW Bottom-Mount Refrigerator GE XNE25JGKNFWW Refrigerator GE XNE25JGKJFBB Bottom-Mount Refrigerator GE GDE25ESKPRSS Refrigerator GE GDE25EYKBRFS Refrigerator GE GDE25ESKNRSS Refrigerator GE GDE25ESKLRSS Bottom-Mount Refrigerator GE GDE21EMKPRES Refrigerator GE GDE21EMKRRES Refrigerator GE GDE21EMKNRES Bottom-Mount Refrigerator GE GDE21EGKPRWW Refrigerator
Showing 1-15 of 67
Write Your Own Review
You're reviewing:GE WR55X30889 Refrigerator Evaporator Harness
Your Rating
FAQS
Customer Questions
What maintenance is required for the GE WR55X30889 Evaporator Harness?

Ensure all connector terminals are clean and free of moisture or frost. Confirm the harness routes smoothly without pinching or tension that could affect signal flow. Check that connections remain secure for consistent evaporator fan and sensor operation. Keep the surrounding area clear of debris.

What are common issues with the GE WR55X30889 Evaporator Harness?

  • Frost builds up around harness connections.
  • Harness insulation melts from heat exposure.
  • Evaporator fan fails due to loose harness.
  • Harness causes erratic temperature readings.

Installation Steps

Step1: Unplug the refrigerator for safety.

Step2: Access the evaporator compartment by removing panels.

Step3: Disconnect the old harness connectors gently.

Step4: Install the new evaporator harness, ensuring proper alignment.

Step5: Secure the harness with clips or screws.

Step6: Reassemble panels, restore power, and test cooling operation.
