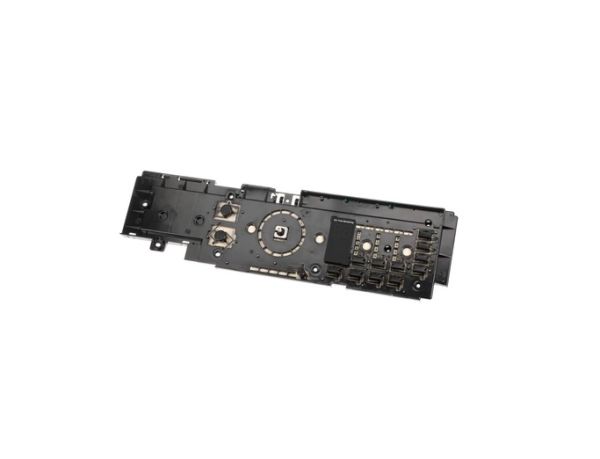

General Electric WH22X36477 Washing Machine Main UI Control Board HE DD

Rating:
5 5 5
5 Reviews Add Your Review
Special Price $223.39 Regular Price $311.22
In stock
Available Quantity:   58
SKU
WH22X36477

Product Description

The GENERAL ELECTRIC WH22X36477 Washing Machine UI-Main Control Board HE DD is responsible for all user interface tasks and washing cycles in high-efficiency direct drive washers. It manages buttons and sensors, regulates motor speed, water levels and the timing of each cycle to ensure efficient and better washing.
Add to Wish List
Washing Machine Parts, Control Boards,
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/h/wh22x36477-53683.jpg

This Part Fits the Following Models (9)

Write Your Own Review
You're reviewing:General Electric WH22X36477 Washing Machine Main UI Control Board HE DD
Your Rating
FAQS
Customer Questions
What maintenance is required for the General Electric WH22X36477 Main UI Control Board?

Keep the control board area dry and free of dust or lint buildup to ensure proper function. Regularly inspect wiring connections for looseness or corrosion. Unplug the washer before any inspection. Regular care prevents electrical faults and extends the board’s durability.

What are common issues with the General Electric WH22X36477 Main UI Control Board?

  • Control panel stops responding to selections.
  • Display flashes random cycle indicators.
  • Washer pauses during active cycles.
  • Buttons register delayed responses.

Installation Steps

Step1: Unplug the washing machine from the power outlet to ensure safety.

Step2: Remove the control panel cover to access the existing UI control board.

Step3: Document and disconnect all wire connectors from the old board.

Step4: Unscrew and carefully remove the old control board from its mounting.

Step5: Install the new control board and secure it with screws.

Step6: Reconnect all wiring to the corresponding terminals.

Step7: Replace the panel, restore power, and test the washer functions to confirm proper operation.
