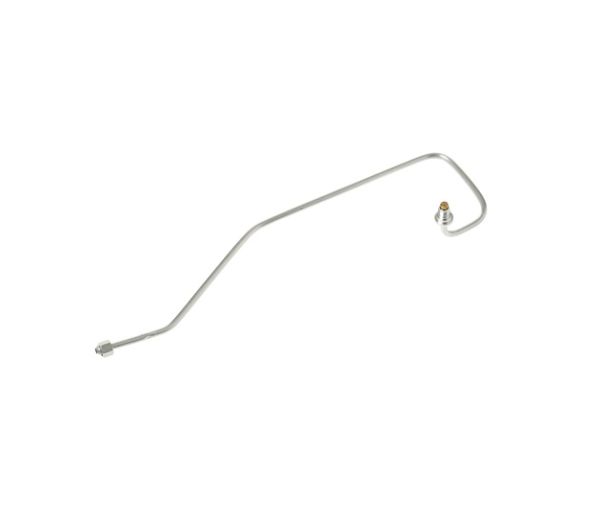

The General Electric WB28X26309 Range Rear Orifice Holder-Right controls gas flow into the rear burner during the working process of the appliance. It is mounted behind the cooktop and is in alignment with the burner assembly, and fuel delivery system to ensure that the orifice is spaced and oriented correctly. Its design assists in the proper distribution of gases, in maintaining the stability of combustion and in meeting the dimensional and fitting requirements of the range structure.
Step 1: The necessary tools for the installation are assembled. This comprises a Phillips screwdriver, needle nose pliers, and a flathead screwdriver.
Step 2: The two screws located at the bottom of the rear orifice holder are detached utilizing the Phillips screwdriver.
Step 3: The old orifice holder is gently extracted from the appliance.
Step 4: The new orifice holder is inserted, ensuring it is positioned securely.
Step 5: The two screws at the base of the orifice holder are fastened with the Phillips screwdriver.
Step 6: The needle nose pliers are employed to carefully position the burner head prior to the knob being reattached.
Step 7: The knob is detached from the appliance by unscrewing the set screw with the flathead screwdriver.
Step 8: The new knob is affixed onto the unit and secured with the flathead screwdriver.
Step 9: The power to the appliance is activated to verify the installation.
By adhering to these straightforward steps, the GE WB28X26309 Rear Orifice Holder Right can be swiftly replaced, ensuring your appliance operates correctly and efficiently.
Please be aware that these directions are served as general guidance and should always be utilized alongside the manufacturer's manual, if accessible.
