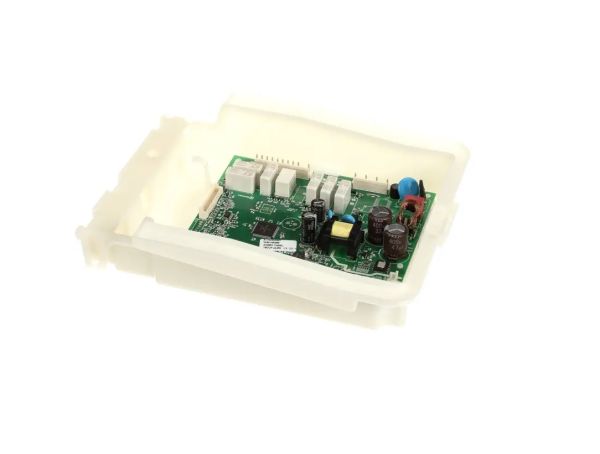

The Frigidaire 5304526865 Main Power Supply Board regulates the flow of power supply to the fridge. It operates by changing and distributing the electrical energy and guiding it to the required area of the appliance. Replacing a defective power supply board, is useful in avoiding problems such as power supply surges, temperature changes, and system breakdown. In this part, the refrigerator becomes more accurate, energy-efficient, long-lasting, and effective in its performance and food preservation.
What maintenance is required for the Frigidaire 5304526865 Main Power Supply Board?
Regularly inspect the board for secure connections and signs of dust or moisture. Ensure all wires are properly seated and that terminals are clean. Test key operations periodically to confirm consistent power delivery. Avoid applying pressure on components during inspection.
What are common issues with the Frigidaire 5304526865 Main Power Supply Board?
Indicators or lights flickering.
Cycles not initiating correctly.
Erratic operation of connected components.
Control panel is failing to respond consistently.
Installation Steps
Step1: Unplug the refrigerator to avoid electrical risk.
Step2: Remove the rear service panel using a nut driver.
Step3: Locate the existing power supply board on the mounting bracket.
Step4: Disconnect each wire connector carefully from the old board.
Step5: Install the new board and secure it with mounting screws.
Step6: Reattach the panel and restore power to confirm operation.
