main product photo

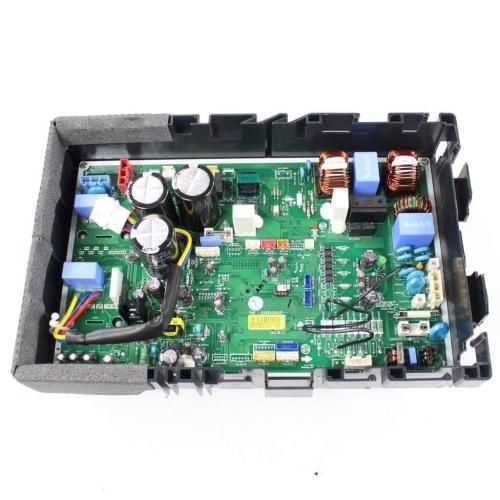

LG EBR83796503 AC Inverter Onboarding PCB Assembly

Be the first to review this product
Special Price $361.82 Regular Price $452.95
Out of stock
Available Quantity:   0
SKU
EBR83796503

Product Description

The LG EBR83796503 AC Inverter Onboarding PCB Assembly works to regulate the voltage and current to the compressor to minimize the fluctuation of power and increase the durability of the system. This circuit board effectively controls electrical signals and enables the transitions between cooling and standby modes while maintaining proper airflow. It has lower energy demand, develop less noise, and increases the general dependability of the system.
Add to Wish List
Other Categories, HVAC Parts, Control Boards|Panels
Manufacturer
https://www.hnkparts.com/media/catalog/product/e/b/ebr83796503_lge_hnkparts.png

This Part Fits the Following Models (1)

Manufacturer Name: LGE
Product Number: EBR83796503
OEM Part Number: EBR83796503
Product Description: Pcb Assy-Rac(Onboarding)

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:LG EBR83796503 AC Inverter Onboarding PCB Assembly
Your Rating
FAQS
Customer Questions
What maintenance is required for the ILG EBR83796503 PCB Assembly?

Regularly inspect the PCB assembly for dust, debris, or loose connections. Use compressed air to clean and avoid moisture. Check solder joints for cracks and ensure proper handling to prevent static damage during servicing.

What are common issues with the ILG EBR83796503 PCB Assembly?

  • Overheating of components.
  • Faulty signal transmission.
  • Short circuits or burnt traces.
  • Intermittent operational failures.
  • Connection instability due to loose or corroded terminals.

Installation Steps

Step1: Disconnect main power supply and ensure the AC unit is fully discharged for safety.

Step2: Open the outdoor unit panel and locate the inverter control PCB compartment.

Step3: Carefully label and disconnect all wiring harnesses from the old PCB.

Step4: Remove mounting screws and take out the faulty PCB assembly.

Step5: Install the new PCB, securing it firmly in the original position.

Step6: Reconnect all connectors exactly as per original configuration.

Step7: Close the panel, restore power, and test operation.
