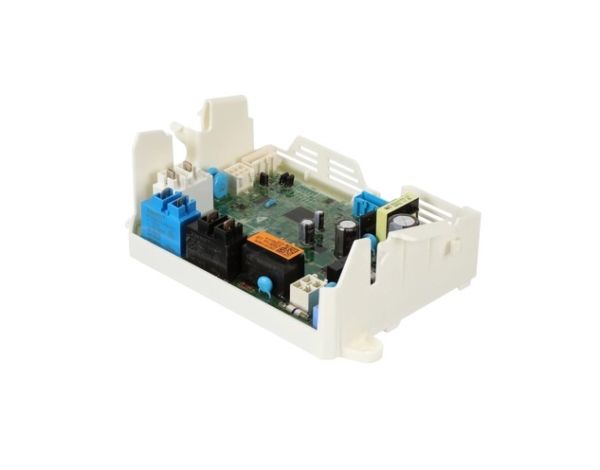

LG EBR31002605 Dryer PCB Assembly

Be the first to review this product
Special Price $259.14 Regular Price $321.95
In stock
Available Quantity:   41
SKU
EBR31002605

Product Description

The LG EBR31002605 Dryer PCB Assembly controls temperature setting, cycle duration and power supply to ensure effective drying. It controls the energy consumption and the settings of the fabric care by processing the signals from the sensors. This component increases the accuracy of the drying process, decreases energy usage, and increases the durability of the appliance. Durable and highly dependable, it doesn’t overheat and is capable of avoiding different forms of failure.
Add to Wish List
Manufacturer
https://www.hnkparts.com/media/catalog/product/e/b/ebr31002605-84651.jpg

This Part Fits the Following Models (14)

Manufacturer Name: LGE
Product Number: EBR31002605
OEM Part Number: EBR31002605
Product Description: Pcb Assy-Main

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:LG EBR31002605 Dryer PCB Assembly
Your Rating
FAQS
Customer Questions
What maintenance is required for the LG EBR31002605 PCB Assembly?

Keep the PCB free from lint, dust, and moisture using a soft brush or dry cloth. Ensure all connectors are fully seated. Test all dryer cycles, sensor readings, and display functions to confirm consistent electrical operation.

What are common issues with the LG EBR31002605 PCB Assembly?

  • Cycles do not start consistently.
  • Display indicators flicker or remain dim.
  • Sensor readings fail intermittently.
  • Dryer heating or tumbling is irregular.

Installation Steps

Step1: Unplug the dryer and remove the top or rear panel.

Step2: Disconnect the existing PCB’s wiring harness carefully.

Step3: Slide out the old PCB and secure the new assembly in place.

Step4: Reconnect all connectors, ensuring tight and correct placement.

Step5: Reinstall the panel, restore power, and run a test cycle to confirm proper function.
