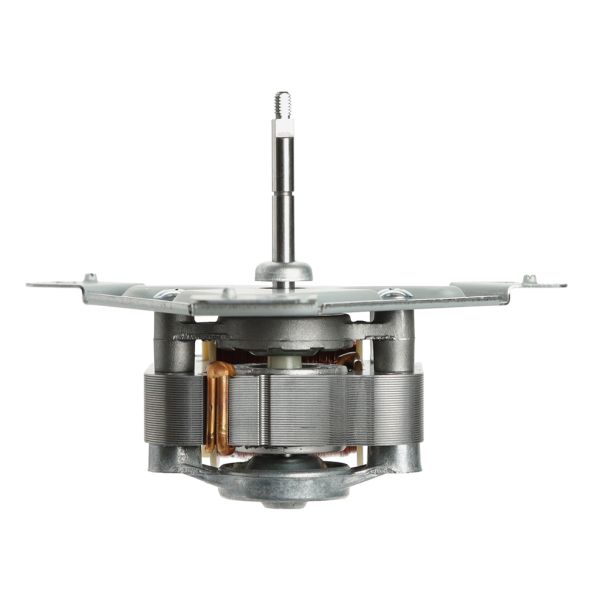

The Samsung DG96-00110F Range Conversion Fan Motor Assembly is responsible for the proper circulation of air within the range, ensuring even cooking and heat circulation. This motor-driven fan assembly is off, and it is used to control the flow of air and ensure that it does not overheat while maintaining the required temperatures. It work by pulling heated air and circulating it efficiently within oven cavity.
Please, mind that only logged in users can submit questions
Installation Steps
Step 1: Your tools and work area are to be organized. A Phillips screwdriver, flathead screwdriver, and a set of needle-nose pliers are to be collected. A well-lit, secure, and ample workspace is to be ensured.
Step 2: The Samsung oven is to be disconnected from power. The power cord is to be identified and detached from the wall outlet.
Step 3: The outer housing is to be taken off. This is to be accomplished by utilizing the Phillips screwdriver to take out the screws surrounding the oven door's perimeter. After the screws are extracted, the top of the oven is to be elevated to reach the internal components.
Step 4: The old convection fan motor assembly is to be extracted. The two mounting screws that hold the fan motor in place within the oven are to be found. The flathead screwdriver is to be employed to take out the screws and the motor is to be carefully lifted from the oven.
Step 5: The new motor assembly is to be positioned. The new motor assembly is to be placed into the oven and secured using the mounting screws.
Step 6: The oven is to be reconstructed and the power is to be reconnected. The outer housing is to be replaced and fastened with the screws. The power cord is to be reinserted into the wall outlet.
Step 7: The new convection fan motor assembly is to be verified. The oven controls are to be adjusted to convection mode and it is to be confirmed that the fan is operational.
Please note that these instructions are to serve as general guidance and should always be complemented with the manufacturer's manual, if available.
