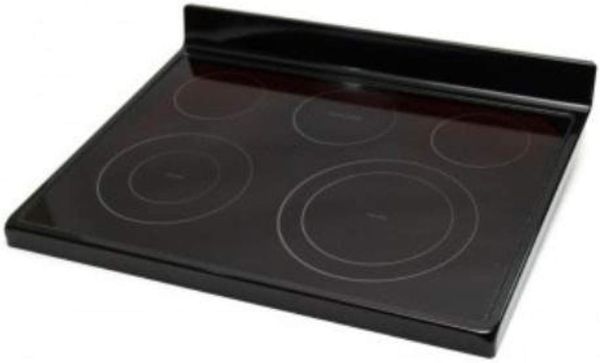

The Samsung DG94-03730B Range-Cooktop Frame Module Assembly is a replacement part that plays the role of holding the cooktop surface and maintaining its stability and performance. It has a structural role of supporting burners and other parts and also protects internal wiring. This module assembly operates in a way that offers a firm and heat-resistant frame that is in harmony with the range design to enable safe and effective cooking.
What maintenance is required for the Samsung DG94-03730B Cooktop Frame Module Assembly?
Check that the frame remains level and properly anchored to the range body. Inspect mounting brackets for looseness after heavy cookware use. Wipe away grease around support edges, and allow the cooktop to cool fully before performing adjustments.
What are common issues with the Samsung DG94-03730B Cooktop Frame Module Assembly?
Cooktop shifting during use.
Burners sitting unevenly.
Grates not aligning properly.
Surface vibration when heating.
Installation Steps
Step1: Turn off the electrical supply to the range.
Step2: Remove grates and lift the cooktop surface.
Step3: Unscrew fasteners securing the existing frame module.
Step4: Detach it carefully from surrounding components.
Step5: Place the new frame module and align the mounting points.
Step6: Secure it and reassemble the cooktop components.
