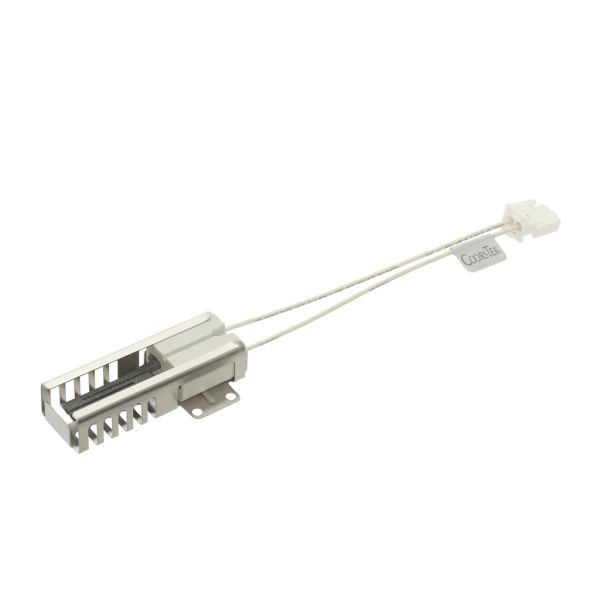

Samsung DG94-00520A Range Oven Hot Surface Igniter Assembly

Special Price $151.16 Regular Price $249.95
In stock
Available Quantity:   432
SKU
DG94-00520A

Product Description

The Samsung DG94-00520A Burner-Igniter is used for lighting the gas to the required heat for cooking in the oven. Produces an electric current that warms up the igniter to the temperature. When it reaches the desired temperature, it opens the gas valve for ignition to ensure a steady performance. This makes it possible to have a uniform heat distribution for better baking outcomes. Designed for longevity and increases the efficiency of the oven, also decreasing energy usage for improved cooking.
Manufacturer
https://www.hnkparts.com/media/catalog/product/d/g/dg94-00520a_smg_hnkparts.png

This Part Fits the Following Models (80)

Samsung NX58F5300SS/AA-01 Range Samsung NX58F5300SS/AA-00 Range Samsung NX583G0VBBB/AA-01 Range Samsung NX583G0VBBB/AA-02 Range Samsung NX583G0VBSR/AA-01 Range Samsung NX583G0VBWW/AA-02 Range Samsung NX583G0VBWW/AA-01 Range Samsung NX583G0VBWW/AA-00 Range Samsung NX583G0VBBB/AA-00 Range Samsung NX58R4311SG-AA-01 Gas Range Samsung NX58R4311SS/AA-00 Free Standing Gas Range Samsung NX58R4311SG/AA-00 Free Standing Gas Range Samsung FX710BGS/XAA-00 Range Samsung FX510BGS/XAA-02 Range Samsung FX510BGS/XAA-01 Range
Showing 1-15 of 80
Manufacturer Name: Samsung
Product Number: DG94-00520A
OEM Part Number: DG94-00520A
Product Description: Hot Surface Igniter

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:Samsung DG94-00520A Range Oven Hot Surface Igniter Assembly
Your Rating
Customer Questions
No Questions
Please, mind that only logged in users can submit questions

Installation Steps

Step 1: To begin with, safety should be prioritized - it should ensure that your appliance is unplugged prior to undertaking any DIY repair tasks.

Step 2: Subsequently, the DG94-00520A Samsung Hot Surface Ignitor should be identified within your appliance. It will be connected to the burner assembly.

Step 3: The two screws that hold the ignitor in place on the burner assembly should be unscrewed.

Step 4: The spark plug wire should be disconnected from the existing ignitor and set aside.

Step 5: Next, the two main terminal wires should be removed from the existing ignitor.

Step 6: The old ignitor should be gently extracted from the appliance and disposed of.

Step 7: The new DG94-00520A Samsung Hot Surface Ignitor should be taken and the two main terminal wires should be connected to their corresponding terminals on the ignitor.

Step 8: The spark plug wire should be attached to the appropriate terminal on the new ignitor.

Step 9: The new ignitor should be positioned in the burner assembly, ensuring that all wires are secure and not pinched beneath the ignitor.

Step 10: The new ignitor should be fastened using the two screws that were previously removed.

Step 11: It should be verified that all connections are secure and correctly placed before your appliance is plugged in and powered on.

By following these straightforward steps, your DG94-00520A Samsung Hot Surface Ignitor will be effectively replaced. Best of luck!

Please remember, these instructions should be utilized as general guidance and should always be used alongside the manufacturer's manual, if it is accessible.
