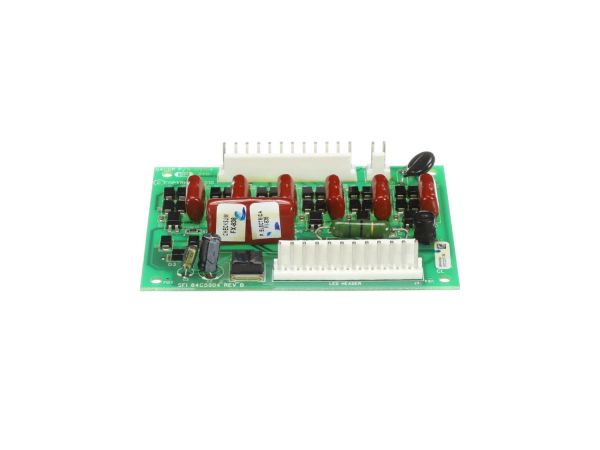

The Samsung DE81-06682A Range Service Board LED Isolator is an essential component for protecting your Samsung range's control panel LED lights. It ensures dependable and safe operation by isolating the LEDs from the high-voltage alternating current mains. This part protects the sensitive electronics from any damage caused by voltage fluctuations or surges by properly disconnecting the LED circuit. The general stability and endurance of the LED lighting system on your range are also improved by this isolation. To put it another way, the isolator prevents harm from electrical imbalances, therefore acting as a barrier of protection that prolongs the life of the control panel LEDs.
Step 1: The oven's power cord is disconnected from the electrical outlet.
Step 2: The Phillips screwdriver is utilized to take out the screws securing the oven's back panel.
Step 3: The back panel is gently taken off and placed aside.
Step 4: The SVC-Board LED Isolator on the circuit board of the oven is identified.
Step 5: A flathead screwdriver is employed to cautiously detach the current LED Isolator from its position on the circuit board.
Step 6: The wire cutters are used to sever the wires connected to the LED Isolator.
Step 7: With the needle nose pliers, the wire ends are stripped.
Step 8: The new DE81-06682A Samsung Range SVC-Board LED Isolator is taken hold of.
Step 9: The stripped ends of the wires are inserted into the respective slots on the new LED Isolator.
Step 10: The new LED Isolator is carefully placed into its designated socket on the oven's circuit board.
Step 11: The back panel is reattached and fastened using the screws.
Step 12: The oven's power cord is reconnected to the electrical outlet.
Your new DE81-06682A Samsung Range SVC-Board LED Isolator has been successfully installed!
It is important to note that these instructions are served as general guidance and should always be referenced alongside the manufacturer's manual, if one is available.
