main product photo

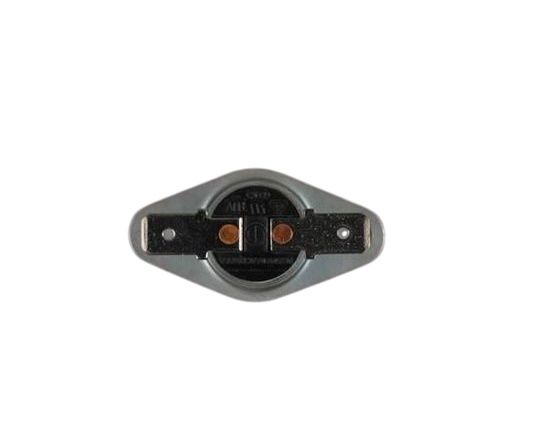

Samsung DE47-20037A Range High-Limit Thermostat

Be the first to review this product
$19.26
In stock
Available Quantity:   338
SKU
DE47-20037A

Product Description

The Samsung DE47-20037A Range High-Limit Thermostat is a safety part that stops the flow of electricity once the temperature rises to hazardous levels. It regulates the heat and cuts the circuit in case of high temperatures. After the appliance cools, the thermostat returns to its normal state to resume its function. This safety feature shields internal parts from heat and is useful in preventing fire risks.
Add to Wish List
Thermostats , Oven Thermostats,
Manufacturer
https://www.hnkparts.com/media/catalog/product/d/e/de47-20037a-48673.jpg

This Part Fits the Following Models (213)

Samsung NE58F9710WS/AA-01 Range Samsung NE58F9710WS/AA-02 Range Samsung NE58F9710WS/AA-03 Range Samsung NE58F9710WS/AA-04 Range Samsung NE58H9950WS/AA-00 Range Samsung NE58H9950WS/AA-01 Range Samsung NE58H9950WS/AA-02 Range Samsung NE58H9970WS/AA-00 Range Samsung NE58K9430SS/AA-00 Range Samsung NE58K9500SG/AA-00 Range Samsung NE58K9500SG/AA-01 Range Samsung NE58K9560WS/AA-00 Range Samsung NE58K9850WG/AA-00 Range Samsung NE58K9850WS/AA-00 Range Samsung NE58R9431SG/AA-00 Electric Range
Showing 1-15 of 213
Manufacturer Name: Samsung
Product Number: DE47-20037A
OEM Part Number: DE47-20037A
Product Description: Range Hi Limit Thermostat

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Samsung DE47-20037A Range High-Limit Thermostat
Your Rating
FAQS
Customer Questions
No Questions
Please, mind that only logged in users can submit questions

Installation Steps

Step 1: The fuse placement should be identified. In a Samsung range oven, the high limit thermostat is positioned at the rear of the oven. It is generally mounted on the back wall of the oven cavity.

Step 2: The old fuse should be extracted. A Phillips screwdriver should be utilized to detach the screws from the terminal block or wires connected to the thermal fuse. The wires should be unplugged from the fuse and set aside.

Step 3: The new fuse should be placed. The wires should be connected to the new fuse and fastened securely with screws. It should ensure that the connections are tight.

Step 4: The oven should be evaluated. The range should be reconnected to the power supply and switched on. The oven should be observed to confirm that it heats correctly and that the temperature remains stable.

Step 5: Any other components should be substituted. If any additional parts of the range require replacement due to wear or damage, those should be replaced as well.

The DE47-20037A Samsung Range Oven High Limit Thermostat Thermal Fuse has now been successfully replaced! The required safety measures should always be remembered to be taken when carrying out any home repairs.

Please note that these instructions should serve as general guidance and should consistently be utilized alongside the manufacturer's manual, if accessible.
