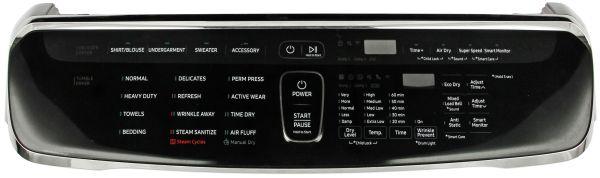

The Samsung DC97-20007B Dryer Control Panel Semi-Assembly is a replacement part that is used to choose the cycle and adjust the time for drying. It is connected to the dryer’s internal control, so people can use its buttons to give commands. It sends those commands to the machine’s circuitry to make sure everything runs smoothly and cycles are completed accurately.
What maintenance is required for the Samsung DC97-20007B Control Panel Semi-Assembly?
Regularly wipe the control panel with a soft, dry cloth to remove dust and spills. Avoid harsh chemicals or excessive moisture to prevent damage. Ensure buttons respond properly, and inspect for loose connections. Proper care maintains accurate dryer operation and user safety.
What are common issues with the Samsung DC97-20007B Control Panel Semi-Assembly?
Buttons not responding or sticking.
Display not lighting up or flickering.
Error codes appearing unexpectedly.
Intermittent or unresponsive touch controls.
Installation Steps
Step1: Disconnect dryer from power supply and gas if applicable to always ensure safety.
Step2: Remove top panel and access existing control panel by unscrewing mounting screws.
Step3: Carefully disconnect wiring harness from old control panel noting positions.
Step4: Connect wiring harness to new semi-assembly and align panel into place, secure screws.
Step5: Reassemble dryer, restore power and test all control functions for proper operation.
