main product photo

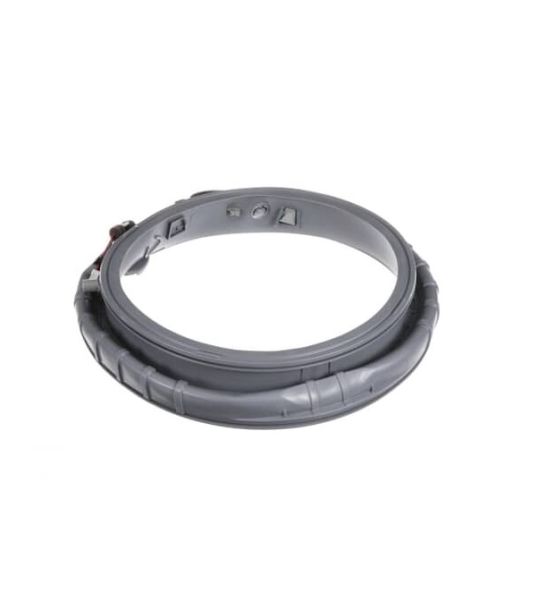

Samsung DC97-19755F Washer Diaphragm Assembly

Be the first to review this product
Special Price $151.11 Regular Price $182.95
In stock
Available Quantity:   25
SKU
DC97-19755F

Product Description

The Samsung DC97-19755F Washer Diaphragm Assembly provide a barrier between the outer tub and the inner drum to prevent leakage during washing. This component work by creating a flexible seal that does not allow any water to leak during the process. During the washing and rinsing process, the diaphragm move to align to the motion of the drum and water. This seal is kept intact by the rubber construction at different spin speeds to ensure that the water does not leak out.
Add to Wish List
Washing Machine Parts, Gaskets|Seals|O-Rings,
Manufacturer
https://www.hnkparts.com/media/catalog/product/d/c/dc97-19755f-68131.jpg

This Part Fits the Following Models (3)

Manufacturer Name: Samsung
Product Number: DC97-19755F
OEM Part Number: DC97-19755F
Product Description: Diaphragm Assy

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Samsung DC97-19755F Washer Diaphragm Assembly
Your Rating
FAQS
Customer Questions
What maintenance is required for the Samsung DC97-19755F Diaphragm Assembly?

Regularly inspect the diaphragm assembly for cracks, leaks, or warping. Clean surrounding areas to prevent debris buildup. Ensure connections are secure and seals are intact. Promptly contact any signs of leakage to maintain proper washer performance and prevent water damage.

What are common issues with the Samsung DC97-19755F Diaphragm Assembly?

  • Water leakage during wash cycles.
  • Irregular water flow or pressure.
  • Hissing or gurgling sounds from the washer.
  • Failure to fill or drain properly.
  • Cracks or deformation of the diaphragm material.

Installation Steps

Step1: Disconnect power and washer water supply for safety immediately.

Step2: Remove washer front panel carefully using proper tools.

Step3: Detach old diaphragm assembly and clean seal area thoroughly.

Step4: Align new diaphragm and secure clips firmly.

Step5: Refit panel, reconnect hoses, and restore power supply.

Step6: Run test cycle to check leaks and performance carefully.

Step7: Inspect installation area thoroughly for stability and safety before use.
