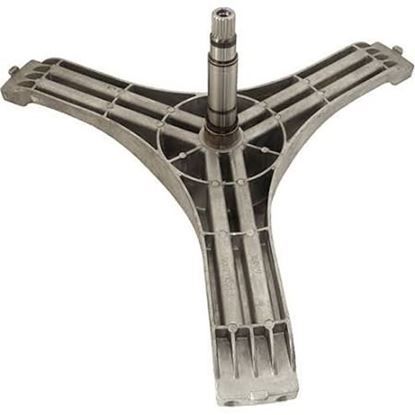

The Samsung DC97-14875B Washer Flange Shaft Assembly is designed to help the drum rotate freely enhance the washing process and ensure the washer drum is coupled to the motor to facilitate the effective transmission of power for even spinning and is designed to enhance its accuracy, which minimizes noise, and vibration, and improves the washing process, this assembly contributes to the stability of the machine and expands its capabilities.
Please, mind that only logged in users can submit questions
Installation Steps
Step 1: The Samsung washer should be disconnected from the electrical outlet and the water supply linked to the appliance should be shut off.
Step 2: Safety goggles and gloves should be equipped for protection, then the screws that secure the inner wash tub should be taken out using a Phillips head screwdriver.
Step 3: The wash tub should be lowered and the DC97-14875B Samsung washer drum flange spider and shaft assembly should be identified, positioned at the center of the inner tub.
Step 4: The screws that hold the drum flange spider and shaft assembly in place should be extracted.
Step 5: The belt should be detached from the motor pulley and the old assembly should be moved aside.
Step 6: The new DC97-14875B Samsung washer drum flange spider and shaft assembly should be inserted into its designated location and fastened with the screws.
Step 7: The belt should be reattached to the motor pulley and it should ensure that it is tightened.
Step 8: The inner tub should be raised back to its original position and secured using the screws.
Step 9: The water supply to the washer should be reactivated and the unit should be reconnected to the electrical outlet.
Step 10: The functionality of the Samsung washer should be verified to confirm that the DC97-14875B Samsung washer drum flange spider and shaft assembly is operating correctly.
Please remember, these instructions are served as general guidance and should always be utilized alongside the manufacturer's manual, if one is available.
