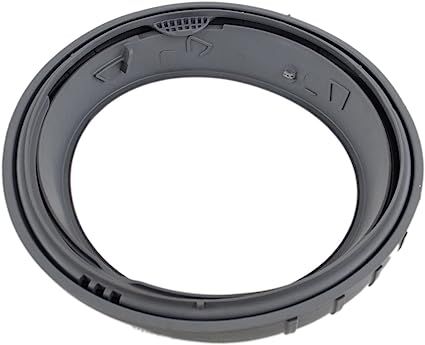

The Samsung DC64-02792A Door Boot Diaphragm is used to provide a tight fit between the washer drum and the door so that the water does not leak when the washer is in operation a flexible rubber gasket that compresses tightly when the door closes to prevent water leakage while at the same time permitting the free movement of the drum and preventing it from getting damaged and minimizing the formation of mold while at the same time providing better wash.
Please, mind that only logged in users can submit questions
Installation Steps
Step 1: Initially, all the required tools and materials for the replacement of the washer door diaphragm should be gathered: Phillips head screwdriver, 1/4 inch nut driver, flat blade screwdriver, needle nose pliers, and a new DC64-02792A Samsung washer door diaphragm.
Step 2: The washing machine should be disconnected from the electrical outlet and then moved away from the wall to create space for accessing the back panel.
Step 3: With the Phillips head screwdriver, the two screws positioned at the top of the back panel should be taken out.
Step 4: The back panel should be lifted upwards and away from the washer, then placed aside.
Step 5: Employing the flat blade screwdriver, the plastic cover that shields the door latch assembly should be detached from inside the washer.
Step 6: Using the needle nose pliers, the insulator should be carefully grasped and then a 1/4 nut driver should be utilized to unscrew the screws securing the door latch assembly.
Step 7: The door latch assembly should be taken out and set aside. This will allow access to the door diaphragm situated beneath the assembly.
Step 8: The old door diaphragm should be eliminated and disposed of.
Step 9: The new DC64-02792A Samsung washer door diaphragm should be obtained and positioned in the same location as the previous one.
Step 10: The door latch assembly, the insulator, and the plastic cover should be reattached.
Step 11: The back panel should be repositioned onto the washer and fastened with the two screws.
Step 12: The washing machine should be reconnected to the wall outlet, completing the replacement of the DC64-02792A Samsung washer door diaphragm.
Please be aware that these instructions should be used as general guidance and should consistently be used alongside the manufacturer’s manual, if one is accessible.
