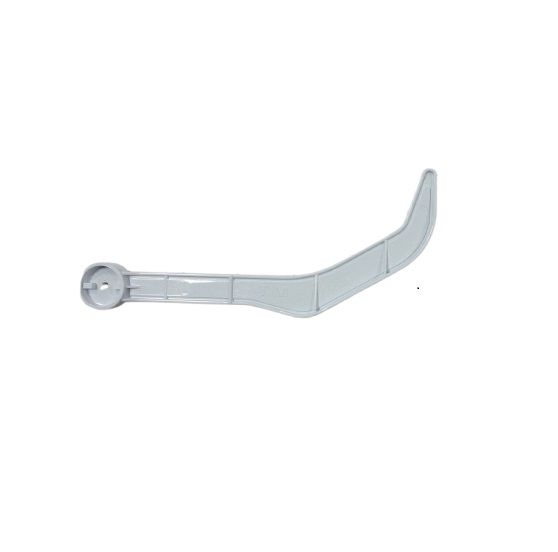

The Samsung DA61-05435A ice shutoff arm is specifically designed for Samsung refrigerators. This small but important component ensures that your ice dispenser functions properly. When your ice bin is full, the shutoff arm prevents the ice maker from producing any more ice, preventing overflows and waste water. If your Samsung refrigerator continues to dispense ice even when the bin is full, or if it stops dispensing ice entirely, a faulty shutoff arm could be the cause. Replacing it with a genuine Samsung DA61-05435A arm will restore your ice dispenser's functionality and ensure a consistent supply of ice without overflows. Furthermore, using genuine Samsung parts improves overall performance and durability.
Please, mind that only logged in users can submit questions
Installation Steps
Step 1: The power cord should be disconnected from your refrigerator.
Step 2: The ice maker situated in the upper left corner of the freezer compartment should be found.
Step 3: The screws that fasten the ice maker to the freezer wall should be taken out. Typically, these screws can be found on either side of the ice maker.
Step 4: The ice maker should be gently detached from the freezer wall, ensuring that all wires stay connected.
Step 5: The shut off level arm linked to the ice maker should be identified and taken off. This component is generally attached to the side of the ice maker with a screw or clip.
Step 6: The shut off level arm should be examined for any signs of damage, checking for cracks or bends that may be contributing to the issue.
Step 7: When the new shut off level arm is prepared to be installed, the new part should be secured to the side of the ice maker using the same screw or clip that held the previous part.
Step 8: The ice maker should be reinserted into the freezer wall and fastened with the screws that were removed in Step 3.
Step 9: The power cord should be reconnected to the refrigerator and your ice maker should be checked to confirm that it is functioning correctly.
Please note that these instructions serve as general guidance and should always be utilized alongside the manufacturer’s manual, if accessible.
