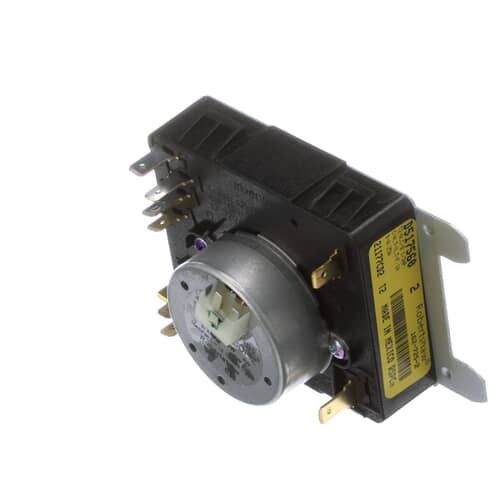

The Speed Queen D517560 Dryer Timer Cycle 4 controls the length of the cycle that the dryer goes through to ensure proper drying and used to regulate the drying process and has several stages to ensure that the clothes do not get over-dried or under-dried. Works through the internal components to heat and cool the drum in a cycle to provide a better drying time for each load as per the selected cycle. This component enhances performance and increases durability.
What maintenance is required for the Speed Queen D517560 Timer?
Check that the timer knob rotates smoothly and stops accurately at each cycle. Inspect internal contacts for dust or corrosion. Test each cycle selection to ensure the timer properly connects the corresponding heating and motor functions.
What are common issues with the Speed Queen D517560 Timer?
Cycles not working correctly.
Timer failing to start.
Incorrect cycle duration.
Heating is not coordinated with the timer.
Installation Steps
Step1: Unplug the dryer from the outlet.
Step2: Access the control console by removing mounting screws.
Step3: Pull off the timer knob and remove retaining hardware.
Step4: Disconnect wires from the existing timer.
Step5: Install the new timer and reconnect the wiring properly.
Step6: Reassemble the console and restore power to test settings.
