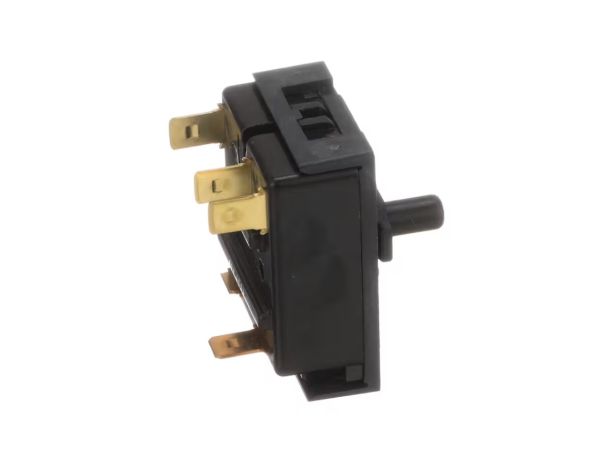

Speed Queen D513505 Dryer Switch Fabric Selector 3 Position

Step 1: The dryer’s power cord should be disconnected from the electrical outlet. This action will safeguard against any unintentional electrical shocks.

Step 2: The two screws that secure the dryer’s back panel should be taken out. The panel should be elevated and placed aside.

Step 3: The current fabric selector switch located within the dryer should be identified. This switch will feature three positions: low, medium, and high.

Step 4: The wires connected to the old fabric selector switch should be detached. A note of the connection points for each wire should be made to guarantee proper reconnection to the new switch.

Step 5: The new fabric selector switch should be positioned in the same location as the old one and the screws should be securely tightened.

Step 6: The wires should be reattached to the new switch, ensuring they are firmly connected.

Step 7: The back panel of the dryer should be reinstalled and fastened using the two screws.

Step 8: The power cord should be reinserted into the electrical outlet.

Step 9: The functionality of the new switch should be verified by testing the various settings.

Congratulations! The D513505 Speed Queen Dryer Fabric Selector Switch (3 Position) has been successfully replaced.

Please note that these instructions should be utilized as general guidance alongside the manufacturer’s manual, if accessible.
