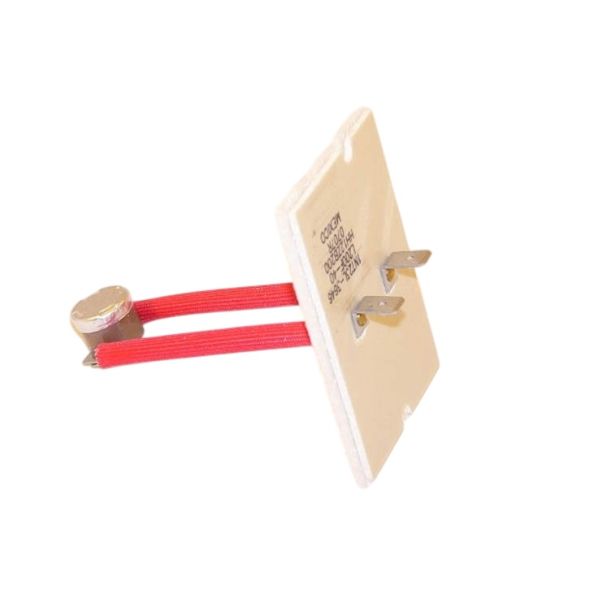

Carrier HH12ZB200 Gas Furnance Hi Limit Switch

Be the first to review this product
Special Price $15.28 Regular Price $30.08
In stock
Available Quantity:   28
SKU
HH12ZB200

Product Description

The Carrier HH12ZB200 Gas Furnace Hi Limit Switch is used to protect the heating system when the internal temperature exceeds safe operating temperature, and the burner is not operated. It works by a temperature-sensitive mechanism that closes the electrical circuit when a set limit is surpassed to avoid overheating. It is attached to the heat exchanger of the furnace or on a panel adjacent to it and, is used to continuously keep track of the thermal conditions. Its operation assists in the reliable furnace operation by aiding in controlling the temperature.
Add to Wish List
Manufacturer
Write Your Own Review
You're reviewing:Carrier HH12ZB200 Gas Furnance Hi Limit Switch
Your Rating
FAQS
Customer Questions
What maintenance is required for the Carrier HH12ZB200 Hi Limit Switch?

Regularly inspect the hi limit switch for dust, corrosion, or loose wiring to ensure proper operation. Test its operation periodically to confirm it triggers at the correct temperature. Replace any worn components immediately. Always disconnect power before performing maintenance for safety.

What are common issues with the Carrier HH12ZB200 Hi Limit Switch?

  • Fails to trip at the designated temperature.
  • Switch contacts become corroded or burned.
  • Intermittent heating system shutdowns.
  • Wiring connections loosen, causing erratic operation.

Installation Steps

Step1: Turn off electrical power at breaker and confirm system is de-energized.

Step2: Remove access panel to locate existing hi-limit switch on heat exchanger or blower housing.

Step3: Disconnect wiring from old switch, noting terminal positions.

Step4: Install new switch in same orientation and secure firmly.

Step5: Reconnect wires, replace panel, restore power, and test system for proper operation.
