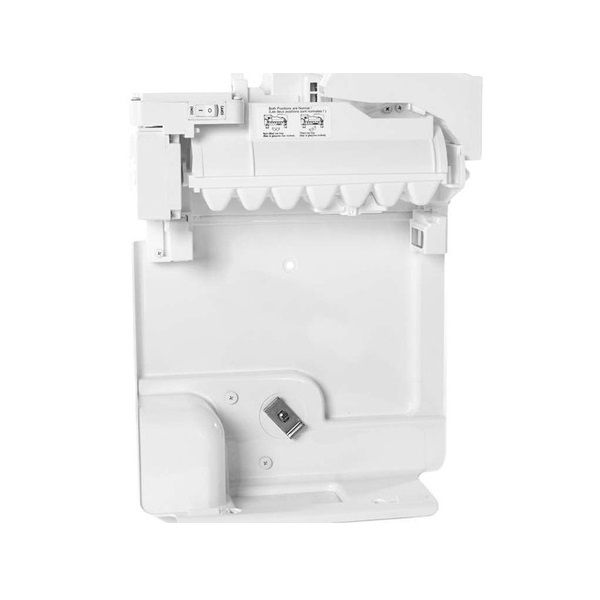

main product photo

LG ACZ74170503 Refrigerator Ice Dispenser Assembly

Rating:
5 5 1
1 Review Add Your Review
Special Price $237.66 Regular Price $314.28
In stock
Available Quantity:   30
SKU
ACZ74170503

Product Description

The LG ACZ74170503 Refrigerator Ice Dispenser Assembly provides a smooth and efficient dispensing of ice for use, to meet the daily requirements. By pressing a button, this part facilitates the operation of moving ice from the storage bin to the dispenser funnel. It is built to withstand damage and tear and is accurate in operation it also prevents ice formation and makes it simple to use.
Add to Wish List
Dispenser,
Manufacturer
✓ This Product Replaces: ACZ74010507
https://www.hnkparts.com/media/catalog/product/a/c/acz74170503-96402.jpg

This Part Fits the Following Models (3)

Manufacturer Name: LGE
Product Number: ACZ74170503
OEM Part Number: ACZ74170503
Product Description: Dispenser Assy-Ice

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews 1
Write Your Own Review
You're reviewing:LG ACZ74170503 Refrigerator Ice Dispenser Assembly
Your Rating
FAQS
Customer Questions
What maintenance is required for the LG ACZ74170503 Ice Dispenser Assembly?

Check that the dispenser chute moves smoothly and ice slides without obstruction. Ensure all electrical connections are secure and free of moisture. Test the dispenser switch and sensor signals during operation to confirm ice is delivered when activated.

What are common issues with the LG ACZ74170503 Ice Dispenser Assembly?

  • Dispenser not releasing ice.
  • Ice jam inside the chute.
  • Ice quantity is inconsistent.
  • Dispenser switch is not triggering.

Installation Steps

Step1: Unplug the refrigerator to prevent electrical hazards.

Step2: Open the refrigerator door to access the dispenser unit.

Step3: Detach the mounting screws securing the existing dispenser assembly.

Step4: Disconnect the wire harness and pull the old assembly out carefully.

Step5: Position the new dispenser assembly and tighten the retaining screws firmly.

Step6: Reconnect wiring, reinstall the ice bin, restore power, and test dispensing.
