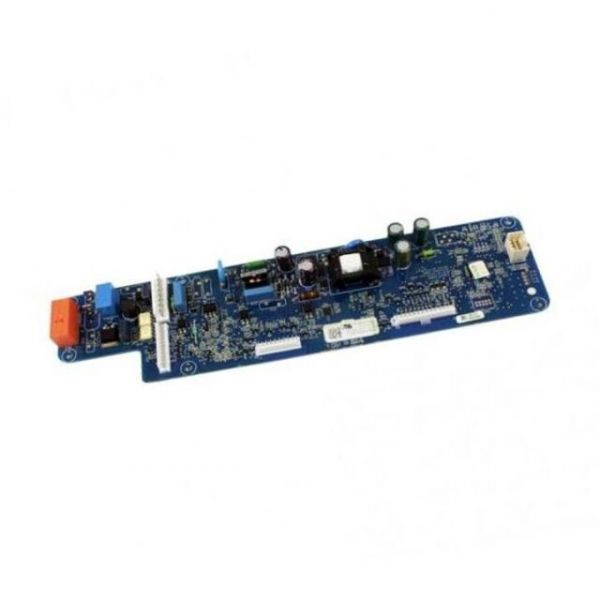

The Frigidaire A11147301 Dishwasher Control Board FIA is the main circuit board that sends electrical signals to different areas of the appliance to regulate its operation in cycles. It controls user inputs like the selection of the cycle and settings and tasks like water filling, heating and draining. It also helps in maintaining the precise control of these functions which in turn improves the efficiency and reliability of the dishwasher.
Please, mind that only logged in users can submit questions
Installation Steps
Step 1: The power supply should be disconnected from your appliance and the water supply should be turned off if it is linked.
Step 2: The screws should be taken out from the exterior panel of the appliance that secure the control board.
Step 3: The front cover should be gently detached, ensuring to pay attention to any wire connections that might be attached.
Step 4: The wires linking the old control board to the appliance should be located and detached.
Step 5: With a screwdriver, the screws fastening the old control board should be unscrewed and it should be taken out from the appliance.
Step 6: The new control board should be positioned into place and it should be fastened using the screws.
Step 7: All wires should be reconnected to the new control board prior to the cover panel being replaced and secured with the screws.
Step 8: The appliance should be reconnected to the power source and the new board should be checked to confirm it is functioning properly.
Step 9: Lastly, the water supply should be turned on if needed and your newly installed control board should be enjoyed!
Please be aware that these instructions are served as general guidance and should always be utilized alongside the manufacturer's manual, if accessible.
