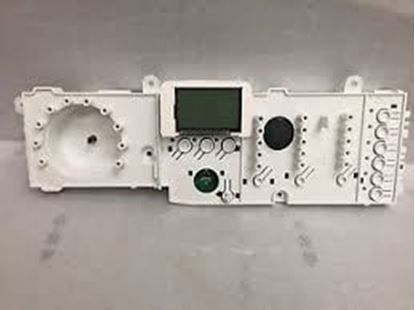

Frigidaire 809160407 Dryer Board

Be the first to review this product
Special Price $170.25 Regular Price $183.95
Out of stock
Available Quantity:   0
SKU
809160407

Product Description

The Frigidaire-809160407 Dryer Board is an electronic control board that is used to control the operations of the dryer and make sure that everything is working in the right manner. It receives information from the user and controls cycles like drying, cooling, and time. In this way, it controls the flow of electrical signals to different parts of the dryer to guarantee efficiency and effectiveness. The advantages of this board include the ability to operate with high reliability, control the cycle effectively, and increase the durability of the equipment to minimize the frequency of repairs.
Add to Wish List
Dryer Parts, Control Boards,
Manufacturer

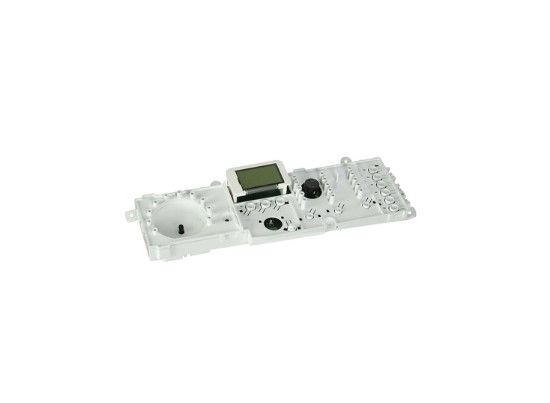

https://www.hnkparts.com/media/catalog/product/8/0/809160407-19749.jpg

This Part Fits the Following Models (5)

Manufacturer Name: FRIGIDAIRE
Product Number: 809160407
OEM Part Number: 809160407
Product Description: Board

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Frigidaire 809160407 Dryer Board
Your Rating
FAQS
Customer Questions
What maintenance is required for the Frigidaire 809160407 Board?

Regularly inspect the dryer board for signs of wear, loose connections, or burn marks. Ensure the dryer is unplugged before accessing components. Keep the control area free from moisture and dust. Proper maintenance used prevent electrical faults and ensures better and accurate operation.

What are common issues with the Frigidaire 809160407 Board?

  • Dryer not starting or responding.
  • Unresponsive or erratic control panel action.
  • Inconsistent drying cycles or timing errors.
  • Failure to send signals to other components.
  • Burnt or damaged circuitry causing malfunction.

Installation Steps

Step1: Disconnect dryer power supply and unplug unit from outlet.

Step2: Remove rear access panel and locate the old board assembly.

Step3: Note wiring for reference, then disconnect harness connectors carefully.

Step4: Install new dryer board, align mounting holes and secure screws.

Step5: Reconnect wires matching diagram exactly; ensure all connectors are firmly seated.

Step6: Reassemble panel, restore power, and run a test cycle to confirm operation.
