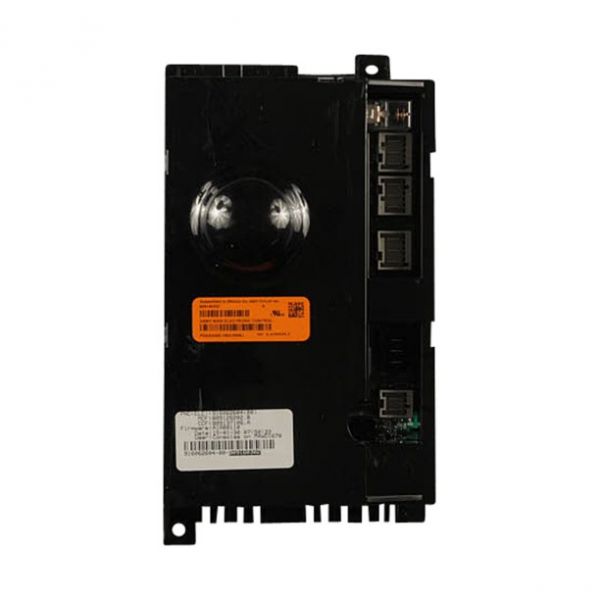

The Frigidaire 809160302NH Dryer Control Board is an electronic component found in residential laundry rooms to control and synchronize the drying process of the electric and gas appliances. This part is the main control unit, which controls the timing, temperature and motor. It functions by taking commands on user-selected settings and sending commands to different internal components like the motor, heating element and sensors.
Step 1: Prior to starting, the power cord should be disconnected from your refrigerator or the power should be disabled at the circuit breaker. This action will safeguard against electrical shocks or injuries while the appliance is worked on.
Step 2: The screws securing the control panel should be identified. Two screws should be found positioned on each side of the control panel near the bottom of the unit.
Step 3: A screwdriver should be employed to take out the two screws, then the panel should be carefully detached from the refrigerator door.
Step 4: The old control panel should be retrieved and gently placed aside.
Step 5: Your new Frigidaire 809160302NH replacement control panel should be grabbed and aligned with the old one. It should ensure that the rear of the panel is properly fitted against the door, with the two screws aligned with their corresponding holes. The new panel should be refastened using the two screws.
Step 6: Your power cord should be reconnected or power should be restored at the circuit breaker.
Step 7: The control panel should be verified to ensure it operates correctly.
Well done! The control panel on your Frigidaire 809160302NH refrigerator has been successfully changed.
Please remember, these instructions are served as general guidance and should always be utilized alongside the manufacturer's manual, if available.
