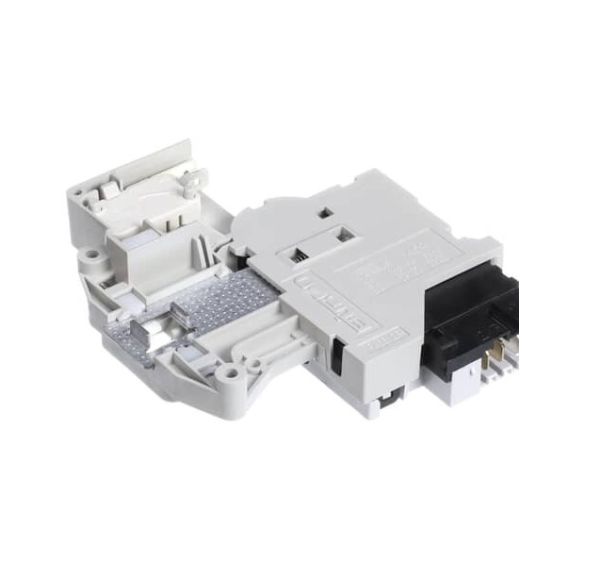

The Speed Queen 803920 Door Latch Switch Assembly is used to ensure that the washer door is securely closed during use and to indicate to the control board that it is locked. It is installed into a door mechanism to make sure that the appliance will not start or restart a cycle unless the door is closed properly. It will preserve a tight seal and avoid water leakage and facilitate the safety of users during every wash.
Please, mind that only logged in users can submit questions
Installation Steps
Step 1: The door latch and switch assembly should be detached from the door. First, the screws securing the assembly in position should be taken out.
Step 2: After all screws have been taken out, the assembly should be gently lifted and extracted from the door. The old assembly should be placed aside.
Step 3: Your new Speed Queen 803920 ASSY DOOR LATCH/SWITCH should be grabbed and, utilizing the screws that were previously removed, the new assembly should be fastened to the door.
Step 4: The power and data wires should be attached to the rear of the assembly. The wire colors should be ensured to correspond to establish the correct weatherproof connection.
Step 5: The assembly should be verified by shutting the door. The switch ought to be engaged when the door is closed.
Step 6: If it fails to do so, it should be confirmed that all wires are accurately connected, and if there is any damage to the wires, they should be substituted with new ones.
Step 7: Once confidence is established that the replacement functions correctly, the installation of the Speed Queen 803920 ASSY DOOR LATCH/SWITCH has been successfully finished!
Please remember, these instructions serve as general guidance and should always be utilized alongside the manufacturer's manual, if available.
