main product photo

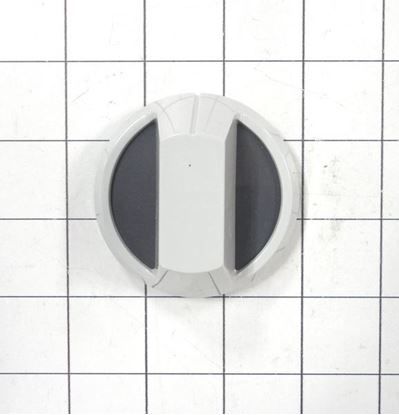

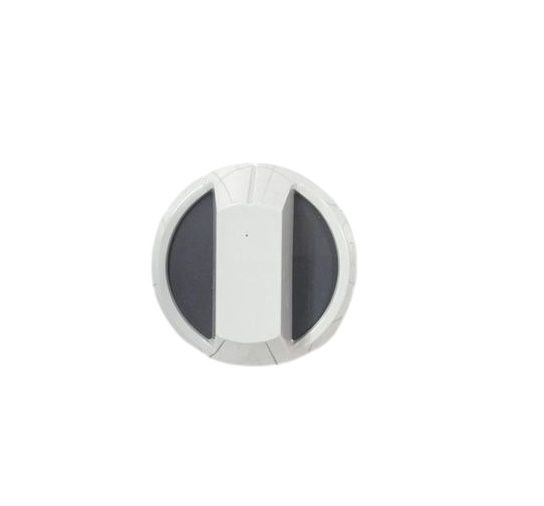

Speed Queen 803118P Washer Timer Knob Assembly

Be the first to review this product
$18.28
In stock
Available Quantity:   14
SKU
803118P

Product Description

The Speed Queen 803118P Washer Timer Knob Assembly controls the cycle timer by providing a manual interface that fits onto the timer shaft. This component connects directly to the protruding control stem and transfers the user rotational movement into the internal timer mechanism. Installed on the front control panel and it regulates the shaft in a fixed orientation so turning the knob rotates the timer dial underneath. The internal grip structure locks onto the shaft shape to prevent slipping during use of the appliance.
Add to Wish List
Manufacturer
https://www.hnkparts.com/media/catalog/product/8/0/803118p.jpg

This Part Fits the Following Models (1)

Manufacturer Name: SPEED QUEEN
Product Number: 803118P
OEM Part Number: 803118P
Product Description: Assy,Timer Knob

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Speed Queen 803118P Washer Timer Knob Assembly
Your Rating
FAQS
Customer Questions
No Questions

Installation Steps

Step 1: The power cord should be disconnected from the wall outlet.

Step 2: The screws that attach the control panel to the dryer should be taken out.

Step 3: The control panel should be elevated off the dryer and placed to the side.

Step 4: The existing timer knob assembly should be located and detached by unscrewing the nut located at the rear of the knob.

Step 5: The new timer knob assembly should be positioned onto the timer motor's shaft.

Step 6: The timer knob assembly should be fastened using the nut from the previous step.

Step 7: The control panel should be reinstalled onto the dryer and secured with the screws.

Step 8: The power cord should be reconnected to the wall outlet.

Step 9: It should be verified and ensured that the new timer knob assembly operates correctly.

Congratulations! The 803118P Speed Queen Dryer Timer Knob Assembly has been successfully replaced.

Please remember, these directions serve as general assistance and should always be utilized alongside the manufacturer's manual, if accessible.
