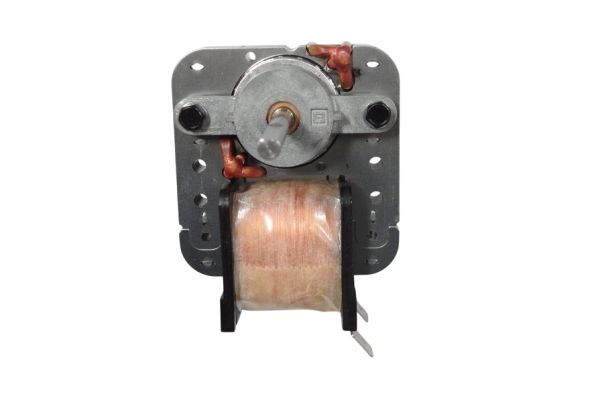

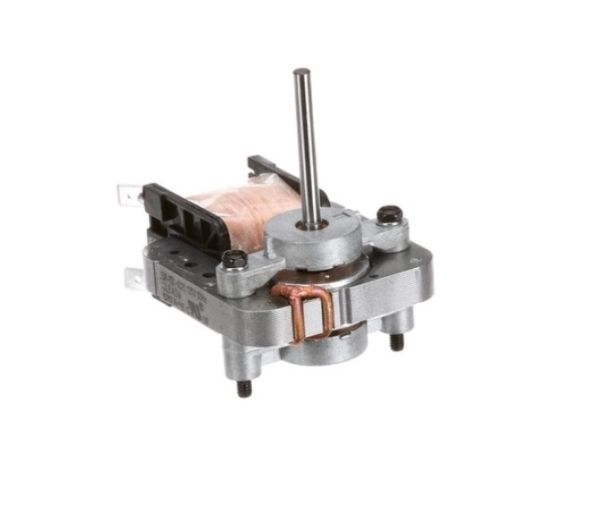

The U-Line 80-54378-00 Refrigerator Condenser Fan Motor moves the air through the condenser coil by forcing a blade of a fan to the shaft. It cools refrigerant lines by preserving airflow, which makes heat dissipated effectively in the working of the compressor. It is installed close to the condenser assembly and is attached to a support bracket with the wiring harness of the unit. This positioning ensures that the system is well ventilated and that the temperatures are maintained.
Please, mind that only logged in users can submit questions
Installation Steps
Step 1: The fan motor within your U-Line refrigerator is identified and it is confirmed that it is the 80-54378-00 component.
Step 2: The rear cover is removed to gain access to the fan motor. A screwdriver is utilized to detach the mounting screws and the power wires are disconnected from the fan motor.
Step 3: The new fan motor is positioned in the appropriate location. It is fastened with the mounting screws and the power wires are reconnected.
Step 4: The motor's operation is verified to confirm it is functioning properly.
Step 5: The back cover is reattached and the refrigerator is reconnected to the power source.
The substitution of an 80-54378-00 U-Line Refrigerator Condenser Fan Motor has now been successfully finished.
Please remember, these instructions are served as general guidance and should always be utilized alongside the manufacturer's manual, if accessible.
