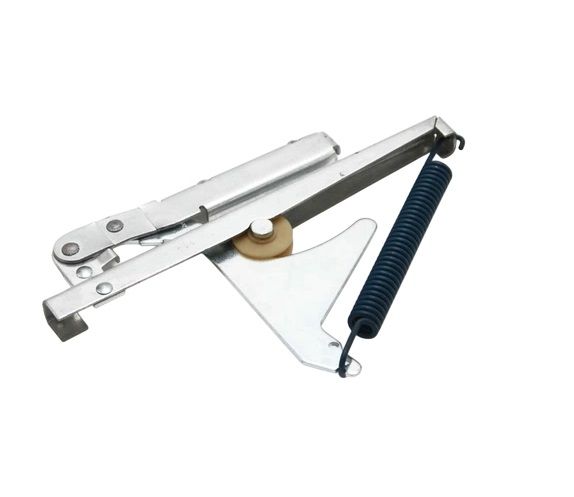

Whirlpool 74011475 Range Oven Door Hinge

Special Price $66.12 Regular Price $92.15
In stock
Available Quantity:   85
SKU
74011475

Product Description

The Whirlpool 74011475 Range Oven Door Hinge is the pivot support that enables the opening and closing of the oven door to move back and forth. It functions by fitting one end to the frame of the oven and the other to the door, which provides it with a hinge point that holds the weight of the door and swings it. This hinge is designed to fit the sides so that when the door is closed, it fits properly.
Manufacturer
https://www.hnkparts.com/media/catalog/product/7/4/74011475-22583.jpg

This Part Fits the Following Models (55)

Showing 1-15 of 55
Manufacturer Name: WHIRLPOOL
Product Number: 74011475
OEM Part Number: 74011475
Product Description: Door Hinge

Choose the best Home Appliance parts and supplies from HNKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:Whirlpool 74011475 Range Oven Door Hinge
Your Rating
Customer Questions
No Questions

Installation Steps

Step 1: The appliances power cord should be disconnected from the wall outlet and the circuit breaker should be deactivated.

Step 2: The oven door should be opened and the two screws located on each side of the old hinge and spring should be taken out.

Step 3: The door should be raised upward off the range and placed aside.

Step 4: The old hinge and spring should be extracted from the oven frame, ensuring that any washers or clips that may have been utilized are retained.

Step 5: The new 74011475 Whirlpool Range Oven door hinge and spring should be positioned in the same location on the oven frame.

Step 6: The door should be reattached to the oven frame, ensuring that the hinge is aligned correctly.

Step 7: The screws on either side of the hinge should be secured using a screwdriver.

Step 8: The manufacturer's guidelines should be adhered to in order to verify the door alignment and perform any necessary modifications.

Step 9: The power cord should be reconnected and the circuit breaker should be switched on.

Step 10: The oven door should be verified to confirm that the hinge and spring are functioning correctly.

Please note that these instructions serve as general guidance and should always be utilized alongside the manufacturer's manual, if accessible.
