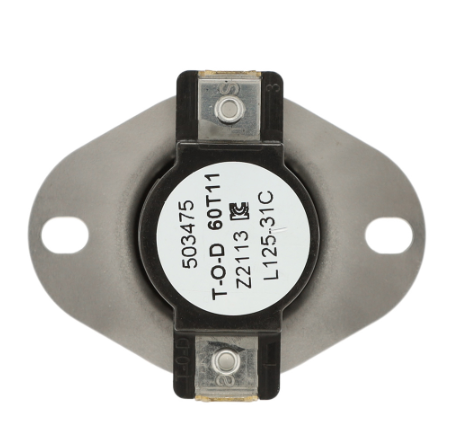

The LG 6931EL3001E Dryer High Limit Thermostat Switch Assembly is used to control the temperature by shutting off the power supply when the it rises beyond the limit. It is also used as a protective part that measures the amount of heat produced within a circuit and shuts off the circuit to prevent damage to the internal parts. When the temperature rise to a dangerous level, it halt the operation and once the temperature is safe, it starts again. This mechanism is useful in avoiding any harm that may be caused to heating elements and other delicate components, maintaining efficiency.
Please, mind that only logged in users can submit questions
Installation Steps
Step 1: The dryer is disconnected from the electrical outlet.
Step 2: The interior is accessed by opening the dryer door and identifying the back panel.
Step 3: The screws securing the back panel are taken out, ensuring that all screws are stored safely.
Step 4: The back panel is removed and placed aside.
Step 5: The existing thermostat is found positioned near the heating element, which will have two wires attached to it.
Step 6: The two wires are detached by unscrewing the wire nuts.
Step 7: The wattage specification of your replacement high limit thermostat is verified to confirm it matches the original.
Step 8: The new thermostat is attached using the same wires that were connected to the previous one. The wire nuts are ensured secured tightly.
Step 9: The back panel is reinstalled onto the dryer and fastened with the screws.
Step 10: The dryer is reconnected to its electrical outlet.
Step 11: The new thermostat is evaluated by setting the dryer to its highest level. The dryer should activate and shut down upon reaching its designated maximum temperature.
Well done! The 6931EL3001E LG Dryer High Limit Thermostat has been effectively replaced.
It is important to note that these guidelines are served as general assistance and should always be referenced alongside the manufacturer's manual, if available.
