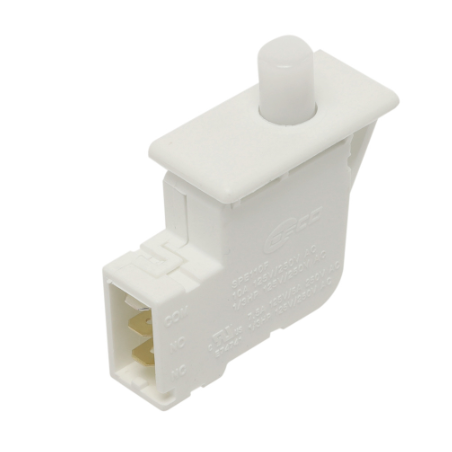

LG 6601EL3001A Dryer Safety Door Switch Assembly

Be the first to review this product
Special Price $16.40 Regular Price $36.08
In stock
Available Quantity:   22
SKU
6601EL3001A

Product Description

The LG 6601EL3001A Dryer Safety Door Switch Assembly detects the position of the door and communicates its open or closed status to the control system, allowing operation only when the door is properly secured. It is mounted within the door opening area where it is triggered by the door latch during closing and connected to the dryer's electrical control circuit through a wired harness. By verifying door closure and interrupting operation when the door is opened, it supports safe and controlled dryer operation cycles.
Add to Wish List
Switch,
Manufacturer
✓ This Product Replaces: EBF61496101
https://www.hnkparts.com/media/catalog/product/6/6/6601el3001a_lge_hnkparts.png

This Part Fits the Following Models (324)

LG Dryer DLEX3001P LG Dryer DLEX3001R LG Dryer DLGX3251R LG Dryer DLGX3251V LG Dryer DLGX3251W LG Dryer DLGX3002R LG Dryer DLGX3002W LG Dryer DLGX3002P LG Dryer DLGX2902V LG Dryer DLGX3361R LG Dryer DLGX3361V LG Dryer DLGX3361W LG Dryer DLGX3371R LG Dryer DLGX3371V LG Dryer DLGX3471V
Showing 1-15 of 324
Manufacturer Name: LGE
Product Number: 6601EL3001A
OEM Part Number: 6601EL3001A
Product Description: Switch Assy-Safety

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:LG 6601EL3001A Dryer Safety Door Switch Assembly
Your Rating
FAQS
Customer Questions
No Questions

Installation Steps

Step 1: The LG dryer is disconnected from the wall outlet and the power cord is detached.

Step 2: The LG dryer door is accessed and the screws found on both sides of the door are taken out. The top of the dryer is slightly lifted back and the upper panel of the dryer cabinet is taken off.

Step 3: The door switch (6601EL3001A) assembly is unlinked from the main control board of the dryer by the two wires that are attached to it being removed.

Step 4: The screws securing the switch to the door are removed, and then the switch is gently taken off the door.

Step 5: The new door switch is placed, with the two wires being reconnected to the main control board. The switch is firmly attached to the door using the screws.

Step 6: The top panel of the dryer cabinet is lowered and secured with the screws.

Step 7: The power cord is reconnected to the wall socket and the functionality of the new door switch is verified.

Well done! The 6601EL3001A LG Dryer Door Switch Assembly has been successfully replaced.

It is important to note that these instructions are served as general guidance and should always be utilized alongside the manufacturer's manual, if available.
