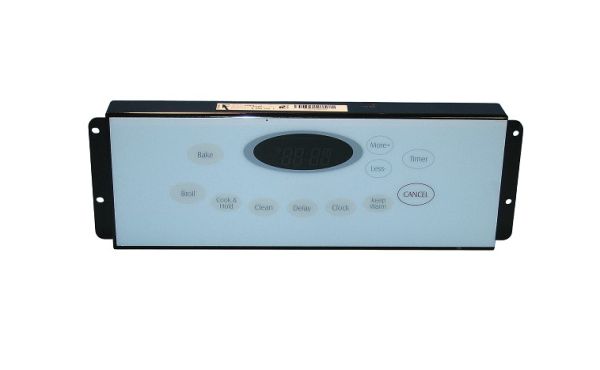

main product photo

Whirlpool 5701M754-60 Range Control Board W/Overlay

Be the first to review this product
Special Price $186.66 Regular Price $316.17
In stock
Available Quantity:   19
SKU
5701M754-60

Product Description

The Whirlpool 5701M754-60 Range Control Board with Overlay takes the input signals from range buttons and sends commands to control the heat levels, timers, and other cooking settings in the range. It regulates and controls the operation of the range’s functions of this board, it is designed to provide the user with seamless interaction and consistent temperature by regulating. This contributes to the overall appliance efficiency gain by enhancing the smooth operation and accurate control through which the appliance operates with better cooking results and convenience.
Add to Wish List
Manufacturer
✓ This Product Replaces: 74009776, 74009777, 74009778, 5701M752-60, 5701M753-60, 74009778, 74009776
https://www.hnkparts.com/media/catalog/product/5/7/5701m754-60-58873.jpg

This Part Fits the Following Models (37)

Showing 1-15 of 37
Manufacturer Name: WHIRLPOOL
Product Number: 5701M754-60
OEM Part Number: 5701M754-60
Product Description: Cntrl-Elec

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Whirlpool 5701M754-60 Range Control Board W/Overlay
Your Rating
FAQS
Customer Questions
What maintenance is required for the Whirlpool 5701M754-60 Control Board W/Overlay?

Ensure the overlay and board are clean and dry. Confirm wiring connections are secure. Test multiple functions to verify consistent response and correct display readings. Avoid pressing buttons too forcefully or repeatedly during operation.

What are common issues with the Whirlpool 5701M754-60 Control Board W/Overlay?

  • Functions not responding when selected.
  • Incorrect settings displayed.
  • Timers failing to start or stop.
  • Certain modes not activating properly.

Installation Steps

Step1: Unplug the range to prevent electrical shock.

Step2: Remove knobs and unscrew the control panel.

Step3: Pull the panel forward and disconnect all wiring from the old control board.

Step4: Remove the old board with overlay and position the new one.

Step5: Reconnect all wires and secure the panel.

Step6: Replace knobs, restore power, and test all operations.
