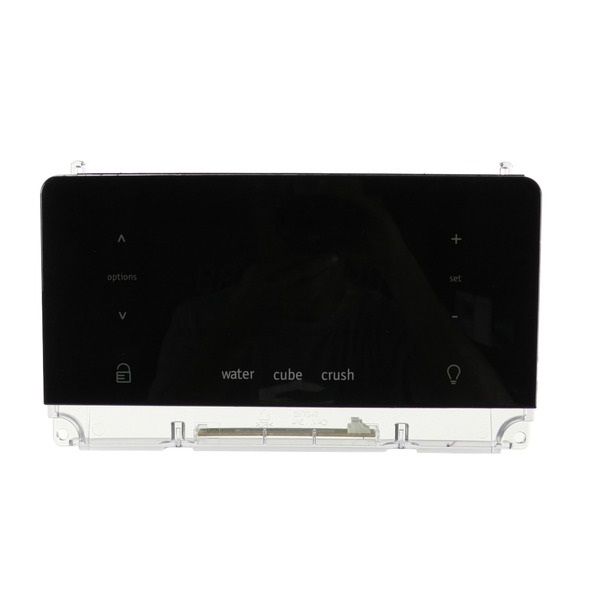

The Frigidaire 5304527930 Refrigerator Dispenser User Interface Assembly is an essential part that improves the activities of refrigerator dispensers. This assembly is responsible for the control of water and ice dispensing and is designed with an interface that enables easy control of the water dispensing or the ice production. As an easy to use product, it has buttons to set the quantity of water or ice to be dispensed to enhance its usability. It helps in low damage on other component of the refrigerator and makes the most of its performance and durability.
Provides electronic control for refrigerator dispenser functions. The FRIGIDAIRE 5304527930 Refrigerator Dispenser Control Board forms part of the dispenser's electronic assembly and processes user selections received through the dispenser interface. It provides the control circuitry required for applicable dispenser functions to respond to user commands.
Circuit Coordination:
Coordinates electronic activity between the dispenser control interface and connected operating circuits. Converts processed input information into corresponding control signals that allow applicable components to respond in the required sequence. This coordination supports integrated operation across the dispenser's electronic system.
Dispenser Control:
Coordinates electronic responses between the dispenser interface and applicable connected components. The board sends control signals for available selections, allowing the corresponding dispenser circuits to operate to intended. This electronic coordination supports consistent interaction between the user interface and dispenser system.
Replacement Guidelines:
Replacing the Refrigerator Dispenser Control Board is appropriate if it is damaged, malfunctioning, excessively worn, or otherwise deteriorated. Verify the FRIGIDAIRE part number 5304527930 and the complete refrigerator model number before replacement. Replace the control board if deterioration affects user input, signal processing, dispenser control response, or normal refrigerator operation.
Common Failure Symptoms:
Ice dispenser failing to respond to selections.
Water dispenser failing to respond correctly.
Dispenser controls becoming intermittent or unresponsive.
User selections not registering consistently.
Dispenser functions responding incorrectly.
Control interface showing abnormal response.
Refrigerator light associated with the dispenser becoming abnormal.
Equipment Compatibility:
The FRIGIDAIRE 5304527930 Refrigerator Dispenser Control Board is intended for equipment that specifies part number 5304527930. Verify the complete refrigerator model number and manufacturer's parts documentation before purchasing to help confirm the correct application.
What maintenance is required for the Frigidaire 5304527930 Dispenser Control Board?
Inspect the board for secure electrical connections and ensure no moisture is present. Test all input buttons and outputs to confirm correct signals. Remove dust or debris from the board area to prevent functional inconsistencies.
What are common issues with the Frigidaire 5304527930 Dispenser Control Board?
Ice or water release inconsistent.
Dispenser not activating water or ice.
Buttons not registering user input.
Display flickering or blank.
What does the Frigidaire 5304527930 control board do?
It provides electronic control for applicable refrigerator dispenser functions and processes user selections.
How does the 5304527930 respond to dispenser selections?
It processes electrical inputs from the dispenser interface and generates corresponding control signals for connected circuits.
What dispenser functions can the 5304527930 support?
It provides electronic control for applicable selections such as ice and water dispensing functions.
What can indicate a failing 5304527930 control board?
Unresponsive dispenser controls, inconsistent selections, abnormal electronic responses, or multiple dispenser functions becoming unavailable can indicate deterioration.
What can indicate a problem with the Frigidaire 5304527930?
Unresponsive dispenser controls, inconsistent user selections, abnormal electronic responses, or multiple dispenser functions becoming unavailable can indicate a problem with the control board.
Installation Steps
Step1: Unplug the refrigerator for safety.
Step2: Remove the dispenser cover by unscrewing the mounting screws.
Step3: Disconnect wiring harnesses from the old control board.
Step4: Remove the old board and align the new one.
Step5: Reconnect wiring and secure with screws.
Step6: Replace cover, plug in refrigerator, and test dispenser functions.
