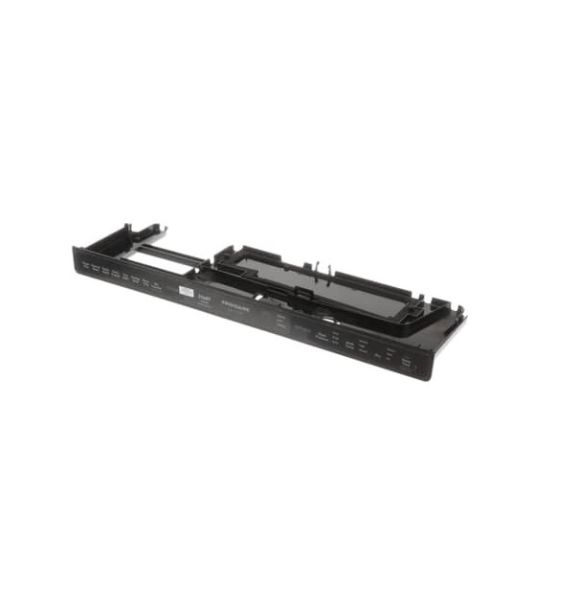

The Frigidaire 5304520552 Dishwasher Control Panel Assembly W/Overlay operates by sending signals to the different parts to start cleaning processes. The working process implies the input of the user on the control panel, which turns on the appropriate wash functions and drying cycles. Advantages are increased control of washing parameters and increased service life of the product. This replacement part is useful in maintaining the functionality of the appliance and ease of performing various dishwashing tasks.
Step 1: Your refrigerator should be disconnected from the power source and the top shelf should be removed.
Step 2: The rear access panel located at the back of the refrigerator should be identified. The panel should be detached by unscrewing the fasteners that hold it.
Step 3: The water supply line and the plastic clip that binds the wires together should be unplugged.
Step 4: The console assembly should be separated from the control board by disconnecting the harness connectors.
Step 5: The four screws that hold the console assembly in position should be unscrewed.
Step 6: The old console assembly should be extracted and the new one should be installed.
Step 7: The console assembly should be fastened using the four screws.
Step 8: The harness connectors between the console assembly and the control board should be reconnected.
Step 9: The water supply line and the plastic clip should be reattached.
Step 10: The rear access panel and its screws should be reinstalled.
Step 11: The top shelf should be replaced.
Step 12: Power to your refrigerator should be restored.
After the console assembly has been swapped in your Frigidaire 5304520552 refrigerator, it is essential to verify the appliance's operation. If everything appears to function correctly, the repair has been successfully finished and pleasure can be taken in your refurbished appliance.
Please remember, these guidelines serve as a general reference and should always be utilized alongside the manufacturer's manual, if accessible.
