main product photo

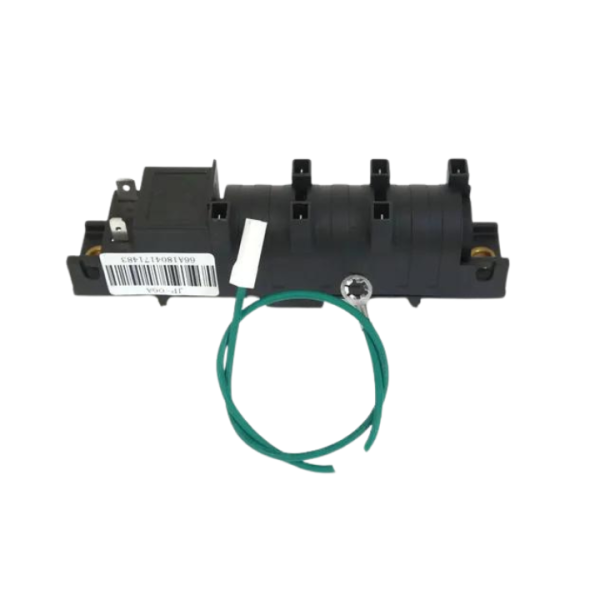

Frigidaire 5304508269 Range Spark Module Kit

Rating:
5 5 12
12 Reviews Add Your Review
Special Price $70.33 Regular Price $78.10
In stock
Available Quantity:   87
SKU
5304508269

Product Description

The Frigidaire 5304508269 Range Spark Module Kit will allow the gas range to ignite properly and consistently for a smooth cooking experience. This essential part produces the required electrical discharge to ignite the burners and guarantee fast and safe operation. It improves cooking flexibility by providing accurate ignition with little effort. Easy to install this original spare part ensures the stove starts working like new and does not just suffer from a delayed or non-existent ignition. This kit enhances the efficiency, safety, and durability of the appliance making it a perfect fit for a fully functional kitchen.
Add to Wish List
Featured Products,
Manufacturer
✓ This Product Replaces: 316262400, 316262404
https://www.hnkparts.com/media/catalog/product/f/r/frigidaire_5304508269_range_spark_module_kit_-_hnk_parts.png

This Part Fits the Following Models (166)

Crosley CRG3180LWA Gas Range Crosley CRG3180PBA Gas Range Crosley CRG3180PWA Gas Range Crosley CRG3485QBA Gas Range Crosley CRG3485QSA Gas Range Crosley CRG3485QSB Gas Range Crosley CRG3485QSC Gas Range Crosley CRG3485QWA Gas Range Crosley CRG3490LWD Gas Range Crosley CRG3490LWE Gas Range Crosley CRG3490LWC Gas Range Crosley CRG3490LSC Range Crosley CRG3490LSE Gas Range Crosley CRG3490LSD Gas Range Crosley CRG3490LWB Gas Range
Showing 1-15 of 166

Product Overview:

Controls the electrical spark sequence for burner ignition. The Frigidaire 5304508269 Range Spark Module Kit converts ignition input from the burner switch circuit into high-voltage output that is delivered to the corresponding spark electrodes during burner startup. Working within the range's electronic ignition system, it coordinates communication between the switch circuit and electrode assembly to support normal burner ignition.

Ignition Operations:

Converting incoming electrical power into high-voltage ignition pulses is the primary function of this component. When a burner control is activated, it produces controlled electrical discharges that travel to the ignition electrodes, creating the spark required to ignite the gas-air mixture at the burner. This electrical process initiates the burner ignition sequence according to the range's designed operating cycle.

Burner Ignition Coordination:

Integrating with the burner switches, ignition electrodes, wiring harnesses, gas valves, and burner assemblies, this component forms part of the range's coordinated ignition circuit. The module responds to the electrical demand established by the control system and directs spark output through the connected ignition circuit to the appropriate burner position. This interaction synchronizes the electrical ignition stage with the gas delivery and burner assembly, allowing the range to transition from ignition to normal burner operation.

Replacement Guidelines:

The Frigidaire 5304508269 Range Spark Module Kit should be replaced when the original component can no longer generate or distribute the electrical pulses required for burner ignition. Failure of the module may affect spark production, ignition timing, or operation of connected burner ignition components. Because spark modules are designed with model-specific electrical characteristics and connector configurations.

Common Failure Symptoms:

  • Surface burner does not produce an ignition spark.
  • Multiple burners experience ignition difficulties.
  • Spark output is weak or inconsistent during startup.
  • Burner ignition is delayed after the control knob is activated.
  • Continuous sparking occurs after burner ignition.
  • Ignition components do not operate as expected.

Equipment Compatibility:

The Frigidaire 5304508269 Range Spark Module Kit is designed for select Frigidaire gas range models. Always verify the appliance model number and part number before purchasing to ensure compatibility with your specific appliance.

Technical Specifications:

Part Number: 5304508269

Brand: Frigidaire

Product Type: Spark Module Kit

Reviews 12
Write Your Own Review
You're reviewing:Frigidaire 5304508269 Range Spark Module Kit
Your Rating
FAQS
Customer Questions
What maintenance is required for the Frigidaire 5304508269 Spark Module Kit?

Keep the surrounding burner area clean to prevent grease or moisture from affecting spark generation. Inspect ignition wires periodically for looseness or damage. Always disconnect power before servicing the range. Proper cleaning and careful inspection help maintain reliable burner ignition and safe appliance operation.

What are common issues with the Frigidaire 5304508269 Spark Module Kit?

  • Igniter fails to spark consistently.
  • Noise occurs during ignition.
  • Sparks misfire under high humidity.
  • Connections loosen over repeated use.

What is the Frigidaire 5304508269 Spark Module Kit?

The Frigidaire 5304508269 is a spark module kit associated with the ignition system of compatible Frigidaire cooking appliances.

What type of component is a spark module kit?

A spark module kit is an electrical ignition component that forms part of the appliance's spark-generation system.

How does a spark module relate to the burner ignition system?

The spark module is part of the electrical system that provides the spark required within the burner ignition arrangement.

What information distinguishes this spark module from similar ignition parts?

The 5304508269 part number and Spark Module Kit description provide the primary identification information for this Frigidaire component.

What should be compared before selecting this spark module kit?

The appliance model number, existing component identification, and applicable Frigidaire parts information should be compared to confirm the correct spark module kit.

Installation Steps

Step1: Unplug the range to ensure safety.

Step2: Remove the cooktop or back panel to access the existing spark module.

Step3: Disconnect all wires from the old spark module, noting their positions.

Step4: Unscrew and remove the old module from its mounting.

Step5: Install the new spark module and secure it with screws.

Step6: Reconnect all wires to the corresponding terminals.

Step7: Reassemble the panel, plug in the range, and test each burner to confirm proper sparking.
