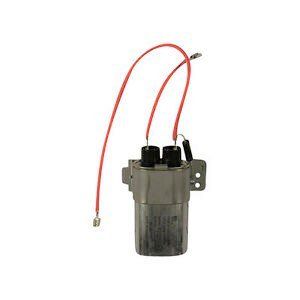

Frigidaire 5304478954 Microwave Capacitor Rectifier Kit

Rating:
5 5 1
1 Review Add Your Review
Special Price $94.41 Regular Price $113.95
In stock
Available Quantity:   10
SKU
5304478954

Product Description

The Frigidaire 5304478954 Microwave Capacitor Rectifier Kit regulates and converts electrical current to supply the high-voltage components needed for cooking. It performs by converting alternating current to direct current while storing a charge to power the magnetron. It is located inside the microwave's high-voltage circuit and is securely wired to the transformer and diode, allowing current to be converted into DC and to run without fault to the electrical system inside the appliance's high-voltage system.
Add to Wish List
Stove & Oven Parts, Microwave Parts,
Manufacturer
✓ This Product Replaces: 5304479019
https://www.hnkparts.com/media/catalog/product/5/3/5304478954.jpg

This Part Fits the Following Models (5)

Manufacturer Name: FRIGIDAIRE
Product Number: 5304478954
OEM Part Number: 5304478954
Product Description: Capacitor/Rectifier

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews 1
Write Your Own Review
You're reviewing:Frigidaire 5304478954 Microwave Capacitor Rectifier Kit
Your Rating
FAQS
Customer Questions
What maintenance is required for the Frigidaire 5304478954 Capacitor Rectifier Kit?

Regularly inspect the microwave capacitor and rectifier connections for corrosion, loose wiring, or burn marks, and ensure the microwave is unplugged before servicing. Clean dust buildup to prevent overheating and arcing. Proper handling reduces electrical faults and improves consistent power delivery.

What are common issues with the Frigidaire 5304478954 Capacitor Rectifier Kit?

  • Overheating or capacitor failure causing no heating.
  • Arcing or burning smell due to insulation breakdown.
  • Intermittent power or weak output.
  • Rectifier diode failure leading to humming or tripping.
  • Visible physical damage or bulging components.
  • Microwave shutting off unexpectedly during operation.

Installation Steps

Step1: Unplug microwave and remove outer cover.

Step2: Discharge capacitor using insulated resistor or screwdriver safely.

Step3: Note wiring positions of capacitor and rectifier.

Step4: Replace old capacitor and rectifier with kit components.

Step5: replace with new capacitor connections and reassemble the microwave housing.

Step6: Test appliance ensuring no sparks or unusual noise.

Step7: Inspect terminals for burns or corrosion before installation.

Step8: Restore power and run short heating cycle under supervision.
