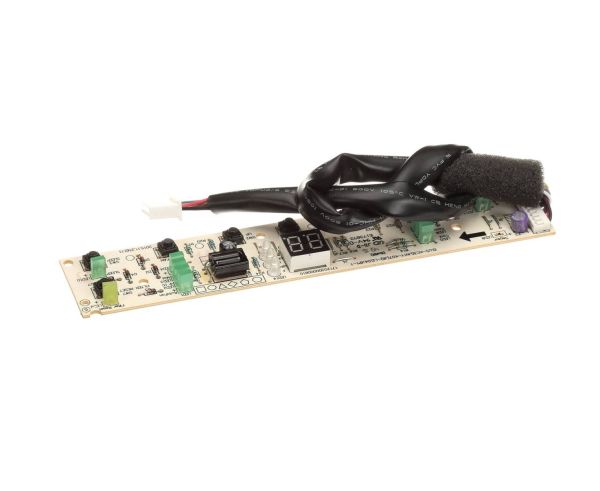

main product photo

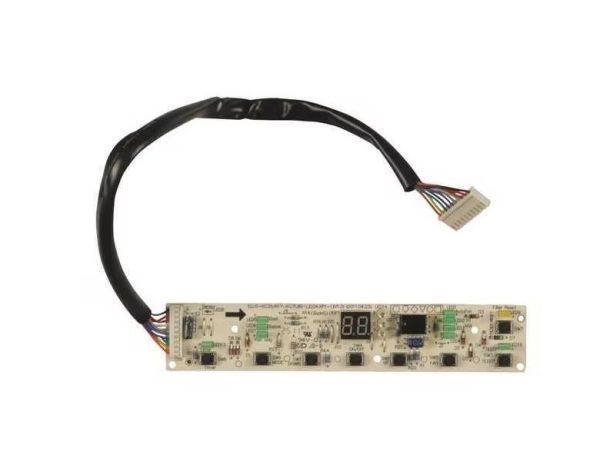

Frigidaire 5304477181 Air Conditioner Printed circuit Board

Rating:
5 5 2
2 Reviews Add Your Review
Special Price $73.34 Regular Price $88.95
Out of stock
Available Quantity:   0
SKU
5304477181

Product Description

The Frigidaire 5304477181 Air Conditioner Printed Circuit Board receives the input of the thermostat and the user interface to control the functions of the system. It is used to interpret setting selections and sensor feedback and send synchronized signals to the components, such as the compressor, fan motors, and modes of operation, and operates by passing electrical signals over circuits and semiconductor components to perform timing, mode changes, and protection logic. It is mounted in the control compartment of the air conditioner and it is connected to the wiring harness.
Add to Wish List
Manufacturer
https://www.hnkparts.com/media/catalog/product/5/3/5304477181.jpg

This Part Fits the Following Models (86)

Crosley CAE29ERR410A10 Room Air Conditioner Crosley CAE29ERR410A12 Room Air Conditioner Crosley CAE29ERR410A11 Room Air Conditioner Crosley CAE29ERR410A13 Room Air Conditioner Crosley CAE25ESRR410A16 Room Air Conditioner Crosley CAE25ESRR410A15 Room Air Conditioner Crosley CAE25ESRR410A14 Room Air Conditioner Crosley CAE25ESRR410A13 Room Air Conditioner Crosley CAE25ESRR410A18 Room Air Conditioner Crosley CAE25ESRR410A17 Room Air Conditioner Crosley CAE15ESRR410A13 Room Air Conditioner Crosley CAE15ESRR410A12 Room Air Conditioner Crosley CAE15ESRR410A11 Room Air Conditioner Crosley CAE15ESRR410A10 Room Air Conditioner Crosley CAE25ESRR410A12 Room Air Conditioner
Showing 1-15 of 86
Manufacturer Name: FRIGIDAIRE
Product Number: 5304477181
OEM Part Number: 5304477181
Product Description: Pc Board

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews 2
Write Your Own Review
You're reviewing:Frigidaire 5304477181 Air Conditioner Printed circuit Board
Your Rating
FAQS
Customer Questions
What maintenance is required for the Frigidaire 5304477181 Printed circuit Board?

Keep the PCB dry and free of dust using a soft cloth. Maintain wiring connections in place. Operate the unit normally to allow proper communication between sensors, fan, and compressor without short circuits or signal interruptions.

What are common issues with the Frigidaire 5304477181 Printed circuit Board?

  • Fan does not respond.
  • Compressor cycles irregularly.
  • Temperature control is inconsistent.
  • Error codes appearing unexpectedly.

Installation Steps

Step1: Disconnect power to the air conditioner to prevent electrical shock.

Step2: Remove the unit’s control panel to access the circuit board.

Step3: Disconnect wiring harnesses from the old board carefully.

Step4: Install the new printed circuit board in the mounting slots and reconnect all wires.

Step5: Reattach the panel, restore power, and test the unit’s operation.
