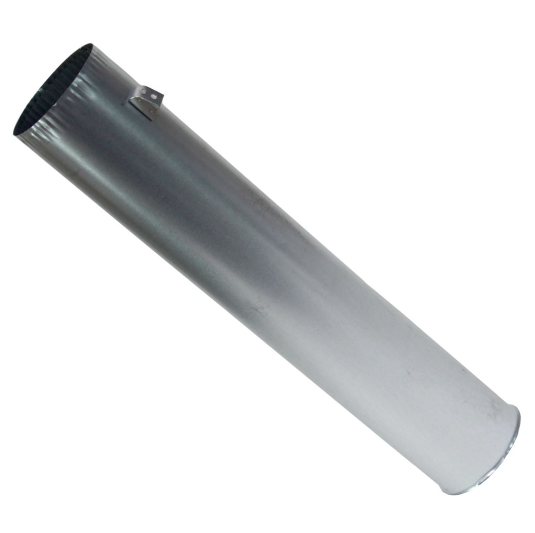

LG 5209EL1006A Dryer Duct Assembly

Be the first to review this product
Special Price $111.45 Regular Price $125.95
In stock
Available Quantity:   33
SKU
5209EL1006A

Product Description

The LG 5209EL1006A Dryer Duct Assembly regulates the hot air and moisture in the drum to the exhaust outlet during operation. It is located in the internal airflow pathway, with the blower housing and vent outlet to allow a continuous air passage. The assembly is intended to use formed duct sections to control the airflow and control lint movement. It operates in connection with the blower and heating system to assist in ensuring efficient air circulation and the normal operation cycles of drying.
Add to Wish List
Dryer Parts, Dryer Drain Hoses,
Manufacturer
https://www.hnkparts.com/media/catalog/product/5/2/5209el1006a_lge_hnkparts.png

This Part Fits the Following Models (283)

LG Dryer DLE8377WM LG Dryer DLE9577WM LG Dryer DLE9577SM LG Dryer DLEX2801W LG Dryer DLEX2650W LG Dryer DLEX2801L LG Dryer DLEX0001TM LG Dryer DLEX2501V LG Dryer DLEX2450R LG Dryer DLEX2501W LG Dryer DLEX2550W LG Dryer DLEX2650R LG Dryer DLEX2550R/00 LG Dryer DLE2350W LG Dryer DLE2350R
Showing 1-15 of 283
Manufacturer Name: LGE
Product Number: 5209EL1006A
OEM Part Number: 5209EL1006A
Product Description: Duct Assy

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:LG 5209EL1006A Dryer Duct Assembly
Your Rating
FAQS
Customer Questions
No Questions

Installation Steps

Step 1: All required tools, materials, and components will be assembled. A new 5209EL1006A LG dryer metal ducting, a utility knife, a screwdriver, pliers, a drill, and a level will be needed.

Step 2: The power supply to the dryer will be disabled. The power cord will be disconnected from the wall outlet or the circuit breaker will be deactivated.

Step 3: The screws that hold the top panel of the dryer in place will be taken out. The top panel will be raised to gain access to the dryer’s interior.

Step 4: The old metal ducting will be detached by unscrewing the screws and nuts that secure it.

Step 5: The length of the new 5209EL1006A LG dryer metal ducting will be assessed to ensure it will fit appropriately. The ducting will be trimmed to the correct length if needed.

Step 6: The new metal ducting will be fitted by attaching it to the current air vents and fastening it with the screws and nuts. The ducting will be ensured to be aligned and level.

Step 7: Power will be restored. The dryer will be run to verify it operates correctly.

Step 8: The top panel of the dryer will be fastened using the screws.

The installation of the 5209EL1006A LG dryer metal ducting has now been finalized.

Note that these instructions are served as general guidance and should always be used alongside the manufacturer’s manual, if accessible.
