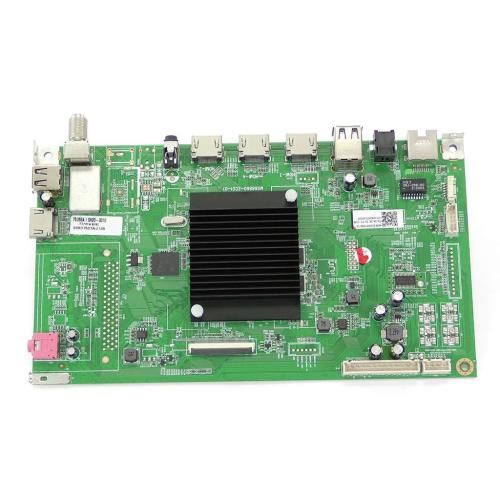

Konka 515C68860M08/75U55A/FG Main PWB MDL.75U55A/FG
$149.40
Out of stock
Available Quantity:
0
SKU
515C68860M08/75U55A/FG
Product Description
The Konka 515C68860M08/75U55A/FG Main PWB MDL.75U55A/FG is the primary printed wiring board that processes and coordinates audio, video, and input signals for the unit's electronic system. It is installed inside the cabinet on the main chassis frame, where it connects to the power supply unit, display panel interface, speaker system, and external input ports. The board receives digital and analog signals from connected sources, processes them through integrated circuits, and distributes synchronized output to display and audio sections. The signal routing and system control are regulated through onboard circuitry to ensure coordinated operation across all connected electronic modules during use.
8.65"X5.75"X1.5"
