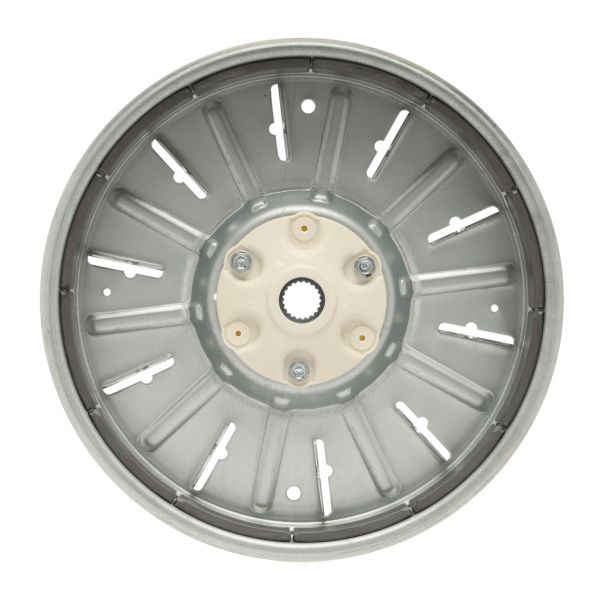

The LG 4413ER1002F Rotor Assembly rotates the drum of the washer through connection with the stator to generate a magnetic field to rotate the motor. This is a vital part that translates electrical energy to mechanical movement that rotates the inner tub in a washing and spinning process. The rotor assembly is designed to perform efficiently and produce less noise, which provides a smooth and consistent movement of the drum assisting in producing better cleaning outcomes on compatible LG front-load washers.
Step 1: The power supply to the LG washer should be disconnected and the plug should be removed from the wall outlet prior to commencing any tasks.
Step 2: The four screws positioned at the top of the washing machine that fasten the wash tub to the cabinet should be identified. These screws should be extracted.
Step 3: The top section of the washing machine should be gently lifted away from the cabinet and tilted back. Access to the rotor assembly will now be available.
Step 4: A Phillips head screwdriver should be employed to detach the bolts securing the rotor assembly.
Step 5: The old rotor assembly should be withdrawn and the new one should be placed in the same location.
Step 6: The rotor assembly should be fastened using the bolts previously removed, and the Phillips head screwdriver should be utilized to tighten them.
Step 7: The top of the washing machine should be reattached and secured to the cabinet with the four screws taken out in step two.
Step 8: The LG washer should be reconnected to the power supply and the power should be switched back on.
Step 9: An empty load cycle should be executed to confirm the proper installation of the new rotor assembly.
Please be aware that these instructions are served as general guidance and should always be accompanied by the manufacturer's manual, if it is accessible.
