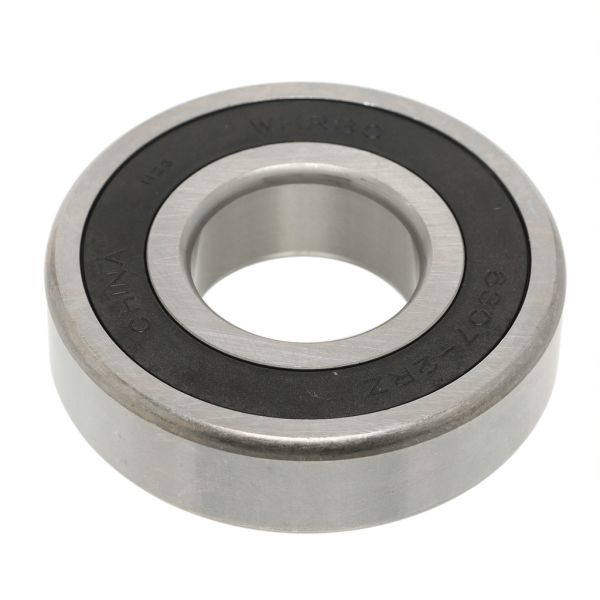

The LG 4280EN4001G Washer Ball Bearing allows the drum to rotate smoothly as the friction between moving components is minimized. It operates by letting the drum shaft turn freely in the correct position, and remain stable throughout the wash and spin cycles. It is installed in the outer tub assembly and is inserted into the bearing housing assigned. This bearing assists in ensuring that the operation is quieter and the drum movement is better.
Step 1: Power should be disconnected from your LG washer at the electrical outlet. This step is crucial for safety and will prevent the machine from being activated while the repair is performed.
Step 2: To reach the back of the washer, the drain hose will need to be detached. The drain hose should be located at the base of the unit and a screwdriver should be utilized to loosen the clamps. The hose should be gently pulled away from the washer to separate it.
Step 3: Employing a socket wrench, the screws positioned at the rear of the washer top should be carefully unscrewed and taken out. The top of the washer should be lifted gently to gain access to the interior components of the machine.
Step 4: After access to the inside of the LG washer is gained, the Thor bolt situated at the rear should be found. This long metal bolt secures the rear tub bearing to the frame. Using the socket wrench, the Thor bolt should be carefully taken out and placed aside.
Step 5: Now, the old bearing should be carefully extracted from the back of the frame. The 7/32-inch Allen wrench should be utilized to unscrew the nut that secures the bearing. Once the nut is off, the bearing should be gently pulled from the frame.
Step 6: It is now time for the new rear tub bearing to be positioned. The new bearing should be inserted into the frame and secured with the 7/32-inch Allen wrench. It should ensure that the bearing is secure and correctly aligned with the frame before proceeding.
Step 7: With the new bearing installed, the Thor bolt should be reinserted. The socket wrench should be used to carefully tighten the Thor bolt until it is secure. It should be confirmed that the bolt is firmly fastened to the frame before continuing to the next step.
Step 8: Lastly, the drain hose should be reconnected to the bottom of the washer. A screwdriver should be employed to tighten the clamps on the hose and ensure a secure fit.
Upon finishing these steps, your 4280EN4001G LG Washer should be ready for use. It should be ensured to power on the machine to verify it operates correctly and that there is no excessive noise. If everything functions as expected, the 4280EN4001G LG Washer Rear Tub Ball Bearing has been successfully swapped.
Please remember that these instructions serve as general guidance and should always be used alongside the manufacturer's manual, if one is available.
