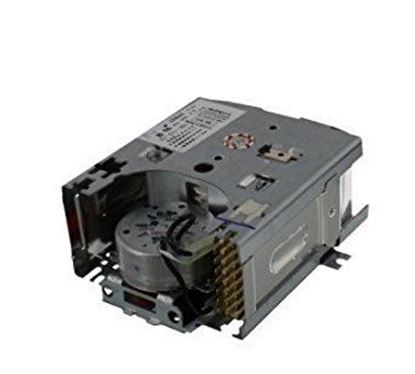

The Speed Queen 37927P Washer-Timer 115V 60Hz 4 Cycle is a control component that manages the sequence and duration of washing operations. It works by sending a timed electrical signal to the motor of the washer, valves, and other components to regulate each phase of the washing cycle.
Step 1: The washer should be disconnected from the electrical outlet or the power should be turned off at the main circuit breaker.
Step 2: The putty knife should be employed to detach and extract the control panel from the top of the washer. The wiring harness should be unplugged from the back of the timer.
Step 3: The screws that hold the timer in place should be taken out using a Phillips head screwdriver. The timer should be gently removed from the cabinet and set on a stable surface.
Step 4: Needlenose pliers should be utilized to unhook the wire terminals from the timer. The wires should be ensured separated to prevent contact with one another.
Step 5: On the new timer, the terminals should be connected exactly as they were attached to the previous timer. It should be verified that all connections are tight.
Step 6: The wiring harness should be reconnected to the back of the new timer.
Step 7: The timer should be placed back into the cabinet, ensuring that the wiring harness is not pinched while it is secured to the cabinet.
Step 8: The timer should be fastened to the cabinet using the Phillips head screws.
Step 9: The washer should be reconnected to the power source or the power should be switched back on at the main circuit breaker.
Step 10: A test cycle should be run on the washer to confirm the timer is functioning correctly.
Well done! The Speed Queen 37927P timer has been successfully replaced.
Please note that these instructions serve as general guidance and should always be followed alongside the manufacturer's manual, if one is available.
