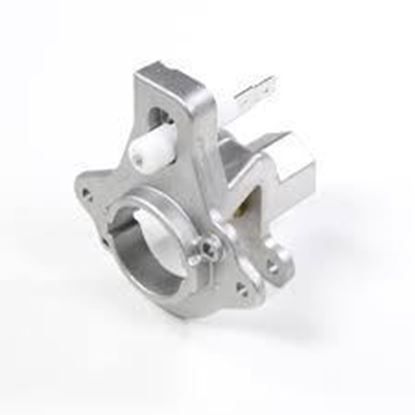

Frigidaire 316540700 Range Ignitor Orifice Assembly

$11.50
In stock
Available Quantity:   90
SKU
316540700

Product Description

IGNITOR/ORIFICE ASSY
Manufacturer
✓ This Product Replaces: 7316540700

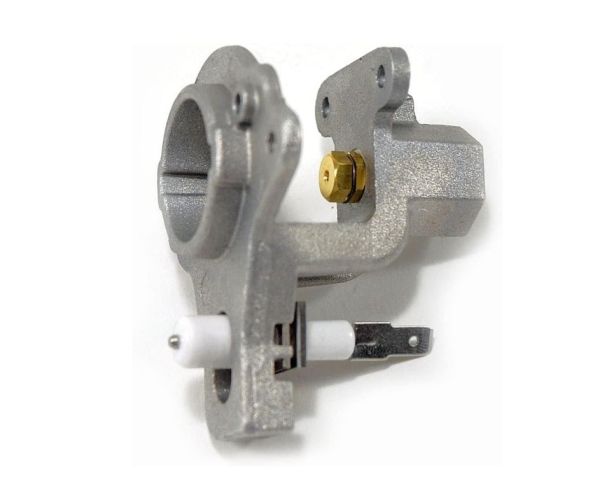

https://www.hnkparts.com/media/catalog/product/3/1/316540700-92998.jpg

This Part Fits the Following Models (344)

Frigidaire CPDS3085KF5 Gas Range Frigidaire CPDS3085KF6 Range Frigidaire CPDS3085KF7 Range Frigidaire CPDS3085KF4 Gas Range Frigidaire CPDS3085KF3 Gas Range Frigidaire CPDS3085KF1 Gas Range Frigidaire CPDS3085KF2 Gas Range Frigidaire CEW30GF6GSE Range Frigidaire CEW30DF6GBD Range Frigidaire CEW30DF6GWD Range Frigidaire CGDS3065KF7 Range Frigidaire CGDS3065PFB Range Frigidaire CGDS3065KW2 Gas Range Frigidaire CGDS3065KW1 Gas Range Frigidaire CGDS3065PFN Range
Showing 1-15 of 344
Manufacturer Name: FRIGIDAIRE
Product Number: 316540700
OEM Part Number: 316540700
Product Description: Ignitor/Orifice Assy

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:Frigidaire 316540700 Range Ignitor Orifice Assembly
Your Rating
Customer Questions
What maintenance is required for the Frigidaire 316540700 Ignitor orifice assembly?

Regularly inspect the range ignitor orifice assembly for grease buildup or blockages and clean it gently with a soft brush. Ensure proper gas flow by checking for debris. Tighten connections securely and turn off power and gas before servicing for safety.

What are common issues with the Frigidaire 316540700 Ignitor orifice assembly?

  • Ignitor fails to spark or ignite gas.
  • Weak or inconsistent flame output.
  • Gas flow obstruction due to clogged orifice.
  • Delayed ignition or clicking without lighting.

Installation Steps

Step1: Shut off gas supply and unplug range to ensure complete safety before starting.

Step2: Remove burner grates and lift cooktop or access panel as required.

Step3: Disconnect old ignitor or orifice assembly carefully from mounting and wiring.

Step4: Install new assembly, ensuring proper alignment with burner and secure all connections.

Step5: Reassemble components, restore gas, and test ignition for better flame operation.
