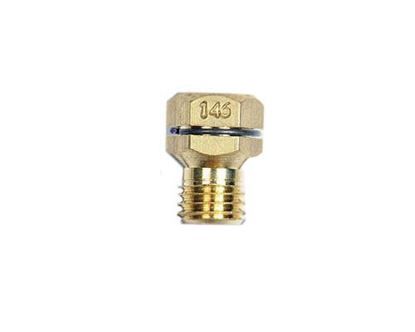

Frigidaire 316527509 Range Top Burner Orifice 18.2K

Special Price $15.33 Regular Price $16.57
In stock
Available Quantity:   12
SKU
316527509

Product Description

The Frigidaire 316527509 Range Top Burner Orifice 18.2K is a gas flow control used to direct the gas through a specially designed orifice to an output surface burner. It is located below the burner head and regulates the amount of gas to inject and maintain a steady flame to be used at higher heat levels. It is installed in the burner assembly and operates with the valve and ignition parts to ensure that combustion is stable during cooking. It is used to sustain the consistent performance of the burners by regulating the flow of gases.
Burner,
Manufacturer
https://www.hnkparts.com/media/catalog/product/3/1/316527509_frigidaire_hnkparts.jpg

This Part Fits the Following Models (749)

Frigidaire LGGF3032KWJ Gas Range Frigidaire LGGF3033KBA Gas Range Frigidaire LGGF3033KBB Range Frigidaire LGGF3033KBD Range Frigidaire LGGF3033KWA Gas Range Frigidaire LGGF3033KWB Range Frigidaire LGGF3033KWD Range Frigidaire LGGF3033KWE Range Frigidaire LGGF3033KWF Gas Range Frigidaire LGGF3033KWG Gas Range Frigidaire LGGF3042KBA Range Frigidaire LGGF3042KBB Range Frigidaire LGGF3042KBC Range Frigidaire LGGF3042KFA Gas Range Frigidaire LGGF3042KFB Gas Range
Showing 1-15 of 749
Manufacturer Name: FRIGIDAIRE
Product Number: 316527509
OEM Part Number: 316527509
Product Description: 18.2K Burner Orifice

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Write Your Own Review
You're reviewing:Frigidaire 316527509 Range Top Burner Orifice 18.2K
Your Rating
Customer Questions
What maintenance is required for the Frigidaire 316527509 Top Burner Orifice?

Keep the range burner orifice clean and free of grease or food debris. Inspect periodically for blockages or corrosion that may affect gas flow. Use a soft brush for cleaning and avoid enlarging. Ensure the gas supply is turned off before handling.

What are common issues with the Frigidaire 316527509 Top Burner Orifice?

  • Blocked orifice causing weak or uneven flame.
  • Improper gas flow leading to low heat output.
  • Clogging from grease or debris buildup
  • Flame sputtering or inconsistent ignition.
  • Corrosion affecting burner performance.

Installation Steps

Step1: Turn off gas supply and disconnect power to range; allow burners to cool fully.

Step2: Remove burner grates, caps, and burner heads to access existing orifice.

Step3: Unscrew old orifice using correct wrench, noting position.

Step4: Install new orifice securely, ensuring proper alignment and thread seating.

Step5: Reassemble components and test for leaks with soapy water before use.

Step6: Ensure flame is steady after relighting and monitor for gas odor.
